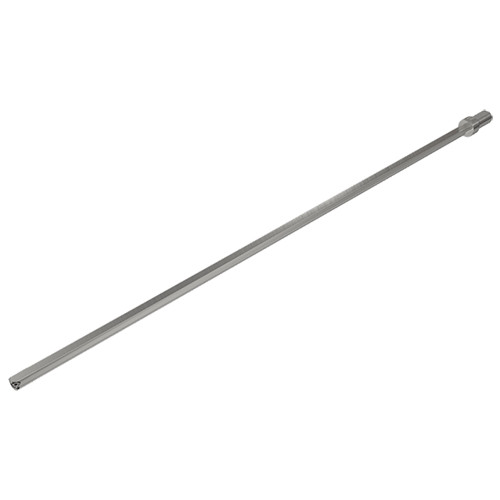

GD-DHL 14.00-800-U04
Gundrills carrying the TOGT indexable inserts, with 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed.
Price: Log in For Price
产品规格

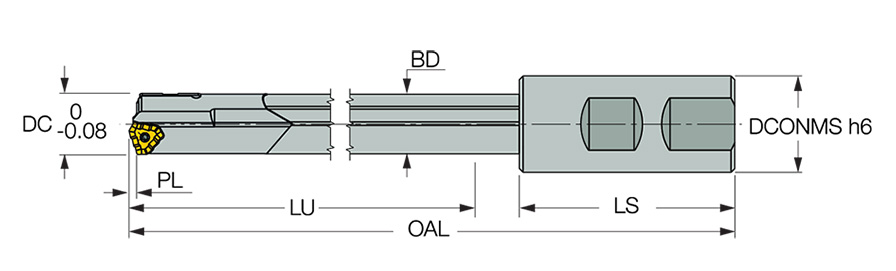

| Cutting Diameter (DC) | 14 mm | Overall Length (OAL) | 802 mm |
| Usable Length (LU) | 711 mm | 测量方式 | Metric |
| 应用 | | 枪钻 | | Master Insert Identification (MIID) | TOGT 07... |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | 刀体材质 | Steel |
| Tool Type | Deep Hole / Gun Drill | 单位 | M |
| Shank Length (LS) | 70 mm |
产品特性
| 系列描述 | Gundrills carrying the TOGT indexable inserts, with 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed. | COO | Japan |
| 备注 | 导向块和刀柄选择，请点击“更多” 注意：非标定制钻杆最长可达2400mm 刀片和导向块需单独订购（不包含在刀具中） 特别提醒：不要使用加工转速进入引导孔，需放慢至50-100rpm |
Shipping Info
包装重量
0.8960
