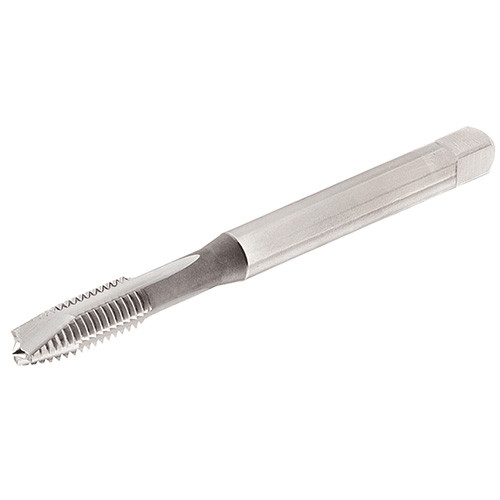

TPGN UNC 1/4-20-M HETI
HSSE 5% Co gun point machine taps - unified coarse threads for a wide range of materials
Price: Log in For Price
产品规格

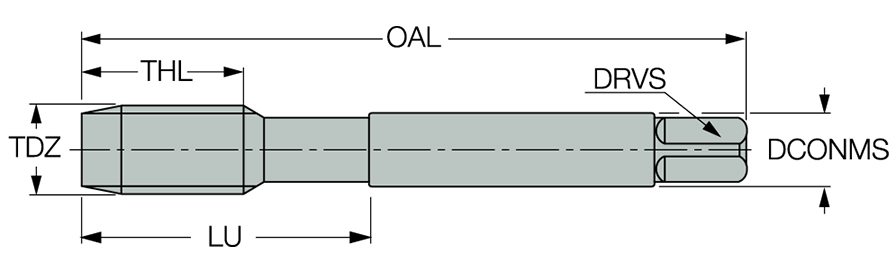

| Thread Diameter Size (TDZ) | UNC 1/4 | 标准 | DIN 371 |
| Threads per Inch (TPI) | 20 | Tool Type | Machine Through Hole Taps |
| Overall Length (OAL) | 80 mm | 涂层 | TiN |
| Thread Cutting Part Length (THL) | 16 mm | Drive Size (DRVS) | 5.5 mm |
| Usable Length (LU) | 30 mm | 测量方式 | Metric |
| Connection Diameter Machine Side (DCONMS) | 7 mm | 等级 | HETI |
| Flute Count (NOF) | 3 | 螺纹尺寸 | UNC 1/4 - 20 |
| 应用 | | 丝锥，用于浅通孔螺纹加工 | 丝锥，用于深通孔螺纹加工 | 用于浅通孔加工的丝锥 | 用于深通孔加工的丝锥 | | 刀体材质 | HSS |
| 切削刃材质 | HSS | 单位 | M |
产品特性
| 系列描述 | HSSE 5% Co gun point machine taps - unified coarse threads for a wide range of materials | COO | Hungary |
Shipping Info
包装重量
0.0210
