AVC-D32-DDMNR-15

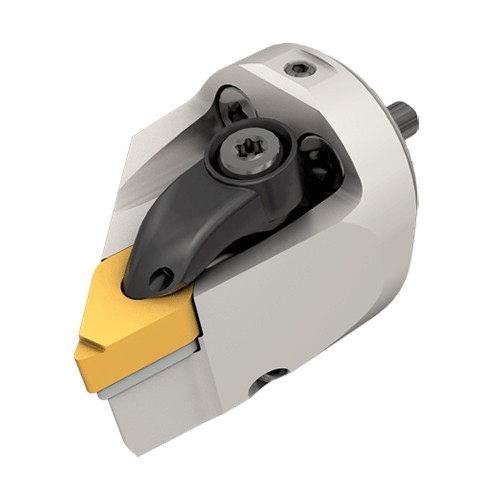

Interchangeable boring heads carrying 55° rhombic inserts.
Price: Log in For Price
产品规格
| Connection Diameter Machine Side (DCONMS) | 32 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 50 mm | 应用 | | Int. 55° Diamond 48° Approach | |
| Overall Length (OAL) | 50 mm | Rake Angle Axial (GAMP) | -10.5 Degrees |
| Functional Width (WF) | 8.5 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Master Insert Identification (MIID) | DNM# 442(150608) | 刀体材质 | Steel |
| Minimum Bore Diameter (DMIN) | 110 mm | 测量方式 | Metric |
| Cutting Direction (HAND) | Right Hand | 单位 | M |
产品特性
| 系列描述 | Interchangeable boring heads carrying 55° rhombic inserts. | 系列名称 | AVC-DDMNR/L |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.2590
名字
Indexable Internal Turning Tools
系列名称
AVC-DDMNR/L
品牌
Iscar
