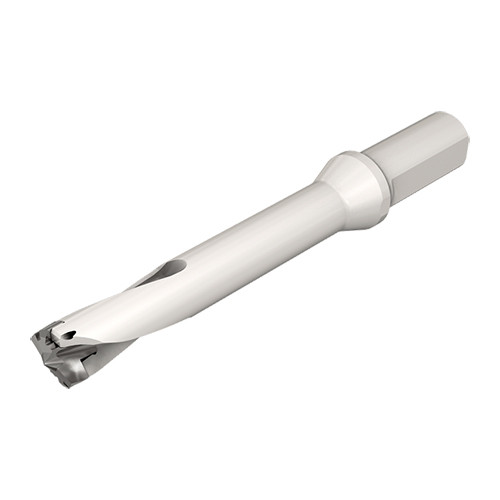

DCN 1181-275-125A-8D-BD
Exchangeable head drills with a reinforced body and a flat shank, diameter ratio 8xD, for construction beam industry.
Price: Log in For Price
产品规格

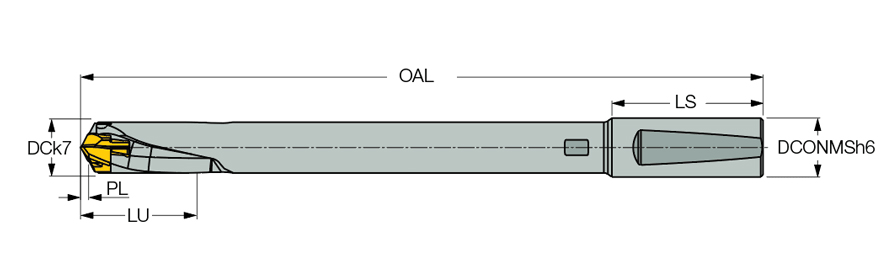

| Cutting Diameter (DC) | 1.181″ | Overall Length (OAL) | 14.283″ |
| Usable Length (LU) | 1.96″ | Shank Length (LS) | 2.36″ |
| 柄部形式 | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| 应用 | | 钻削 | | 测量方式 | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | IHP 300-BD |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Point Length (PL) | 0.15″ |
| Insert Seat Size Code (SSC) | 30.0 | 刀体材质 | Steel |
| Cutting Diameter Minimum (DCN) | 1.181″ | Flange Diameter (DF) | 1.54″ |
| Cutting Diameter Maximum (DCX) | 1.222″ | 十进制 | 1.181″ |
| Protruding Length (LPR) | 11.921″ | 单位 | I |
| Functional Length (LF) | 11.92″ |
产品特性
| 系列描述 | Exchangeable head drills with a reinforced body and a flat shank, diameter ratio 8xD, for construction beam industry. | COO | Israel |
| 备注 | 在采用12倍径钻头钻削前，推荐采用1.5倍径的DCN钻头或中心钻加工出预钻孔。但装夹HCP刀头时则无需加工预钻孔。 |
Shipping Info
包装重量
4.2285
