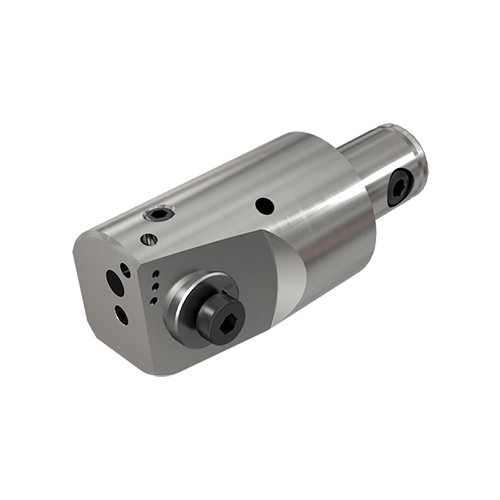

‎BSFD MB63-87-134-F

Digital fine boring heads with 1 µm accurate adjustment and detachable display for diameter range of 23.9 to 203.1 mm.

项# ISC3432696

品牌名称: Iscar

制造商号: 3432696

产品规格

Cutting Diameter Minimum (DCN)

86.9 mm

Tool Type

MB Fine boring heads

Cutting Diameter Maximum (DCX)

134.1 mm

测量方式

Metric

Functional Length (LF)

88 mm

Rotational Speed Maximum (RPMX)

3000 rpm

Body Diameter (BD)

72 mm

刀体材质

Steel

Connection Diameter Machine Side (DCONMS)

63 mm

单位

系列描述

Digital fine boring heads with 1 µm accurate adjustment and detachable display for diameter range of 23.9 to 203.1 mm.

COO

Switzerland

备注

For boring options and operating instructions, click on More Info

包装重量

3.0780
