产品规格

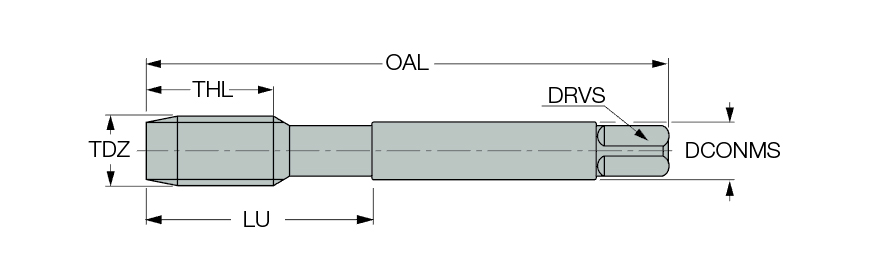

| Tool Type | Machine Blind Hole Taps | 应用 | | 丝锥，用于浅盲孔螺纹加工 | 丝锥，用于浅通孔螺纹加工 | 丝锥，用于深盲孔螺纹加工 | 丝锥，用于深通孔螺纹加工 | 深孔，带浅螺纹 | 用于浅盲孔加工的丝锥 | 用于浅通孔加工的丝锥 | 用于深盲孔加工的丝锥 | 用于深通孔加工的丝锥 | |
| Thread Diameter Size (TDZ) | M7 | 涂层 | TiN |
| Thread Pitch (TP) | 1 mm | 测量方式 | Metric |
| Overall Length (OAL) | 80 mm | 切削刃材质 | HSS |
| Thread Cutting Part Length (THL) | 17 mm | 等级 | HETI |
| Usable Length (LU) | 30 mm | 螺纹尺寸 | M7 × 1 |
| Connection Diameter Machine Side (DCONMS) | 7 mm | 刀体材质 | HSS |
| Flute Count (NOF) | 5 | Thread Form Type (THFT) | M60 |
| 攻丝标准 | DIN 371 | 单位 | M |
| 螺纹标准 | THFT | |
产品特性

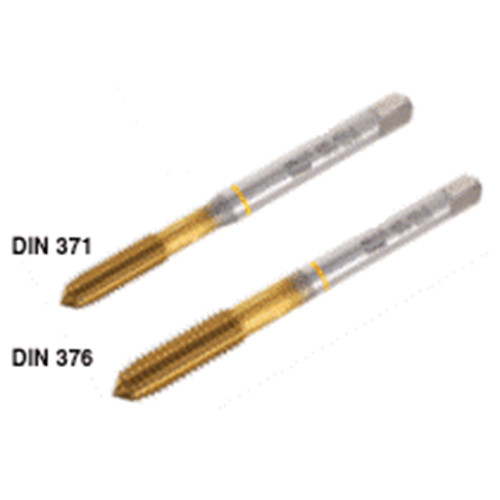

| 系列描述 | DIN 13 高速钢机用挤压丝锥 - 用于ISO公制粗牙螺纹 | COO | Korea |
Shipping Info
包装重量
0.0250
