产品规格
| 螺纹标准 | THFT | | 应用 | | 丝锥，用于浅通孔螺纹加工 | 丝锥，用于深通孔螺纹加工 | 用于浅通孔加工的丝锥 | 用于深通孔加工的丝锥 | |

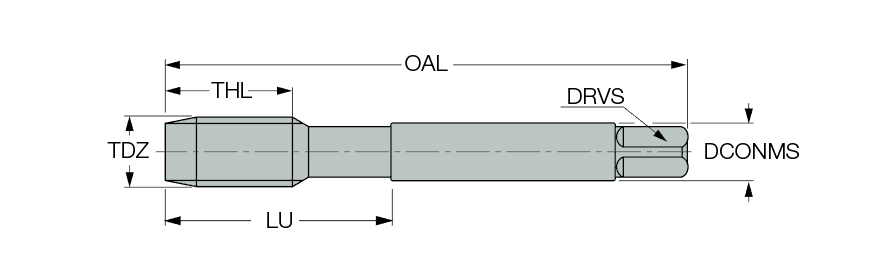

| 螺纹尺寸 | M6 × 1 | Connection Diameter Machine Side (DCONMS) | 6 mm |
| Thread Diameter Size (TDZ) | M6 | Thread Cutting Part Length (THL) | 17 mm |
| Thread Pitch (TP) | 1 mm | Drive Size (DRVS) | 4.9 mm |
| Usable Length (LU) | 30 mm | 测量方式 | Metric |
| Overall Length (OAL) | 80 mm | 等级 | HE |
| 涂层 | Uncoated | 刀体材质 | HSS |
| Flute Count (NOF) | 3 | Thread Form Type (THFT) | M60 |
| 切削刃材质 | HSS | 单位 | M |
| Tool Type | Machine Blind Hole Taps |
产品特性

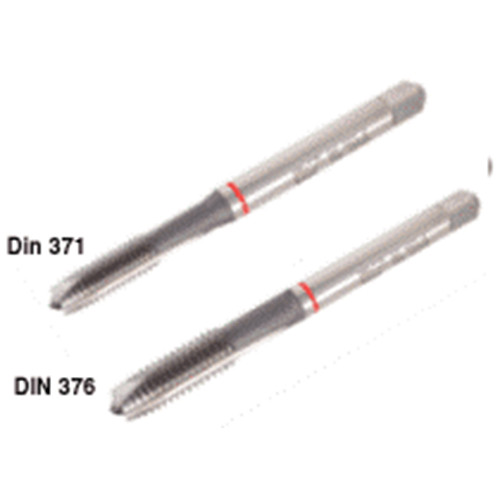

| 系列描述 | DIN 13 高速钢机用带顶尖丝锥 - 用于ISO公制粗牙螺纹，加工淬硬钢和高温合金 | COO | Korea |
Shipping Info
包装重量
0.0180
