产品规格

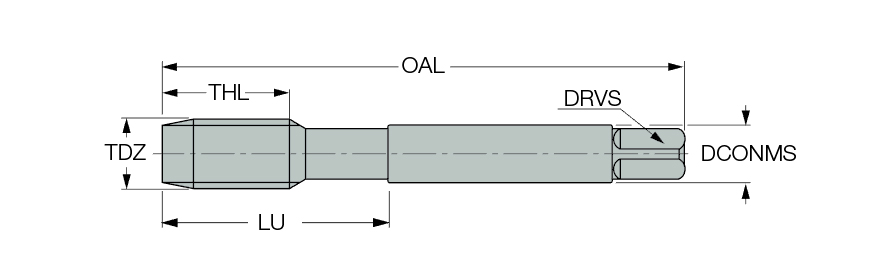

| Thread Diameter Size (TDZ) | M14 | 切削刃材质 | HSS |
| Thread Pitch (TP) | 2 mm | 测量方式 | Metric |
| 螺纹标准 | THFT | | 等级 | HS |
| Overall Length (OAL) | 110 mm | Thread Form Type (THFT) | M60 |
| Thread Cutting Part Length (THL) | 20 mm | 应用 | | 丝锥，用于浅盲孔螺纹加工 | 深孔，带浅螺纹 | 用于浅盲孔加工的丝锥 | |
| Usable Length (LU) | 44 mm | 刀体材质 | HSS |
| Connection Diameter Machine Side (DCONMS) | 11 mm | Drive Size (DRVS) | 9 mm |
| Flute Count (NOF) | 3 | 螺纹尺寸 | M14 × 2 |
| Flute Helix Angle (FHA) | 20 Degrees | 单位 | M |
产品特性

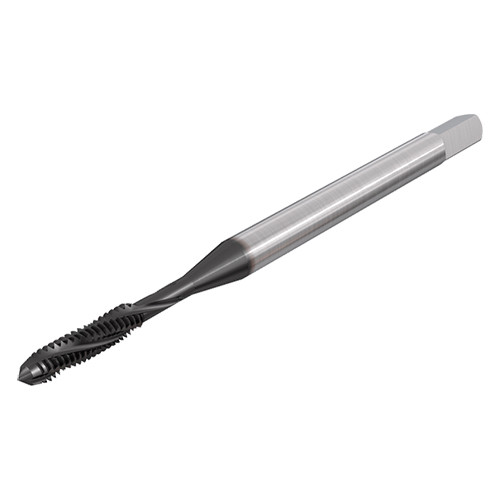

| 系列描述 | DIN 13 高速钢（M2）机用丝锥，右手，40°螺旋槽 - 用于ISO公制粗牙螺纹，加工易切钢 | COO | Korea |
| 备注 | 刀具材料牌号已从HE改为HEST。HEST和HE是完全相同的，因此HE牌号的产品可能仍然能见到。 |
Shipping Info
包装重量
0.0810
