产品规格

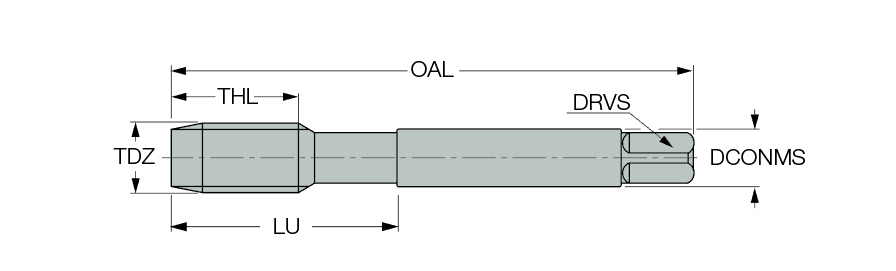

| Thread Diameter Size (TDZ) | #10 | 标准 | DIN 371 |
| Thread Pitch (TP) | 0.781 mm | Tool Type | Machine Through Hole Taps |
| Threads per Inch (TPI) | 32 Threads/" | 涂层 | Uncoated |
| 螺纹标准 | THFT | | Drive Size (DRVS) | 4.9 mm |
| Overall Length (OAL) | 70 mm | 测量方式 | Metric |
| Thread Cutting Part Length (THL) | 15 mm | 等级 | HE |
| Usable Length (LU) | 25 mm | 螺纹尺寸 | 10 - 32 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | 刀体材质 | HSS |
| Flute Count (NOF) | 3 | Thread Form Type (THFT) | UN60 |
| 应用 | | 丝锥，用于浅通孔螺纹加工 | 丝锥，用于深通孔螺纹加工 | 用于浅通孔加工的丝锥 | 用于深通孔加工的丝锥 | | 单位 | M |
| 切削刃材质 | HSS |
产品特性

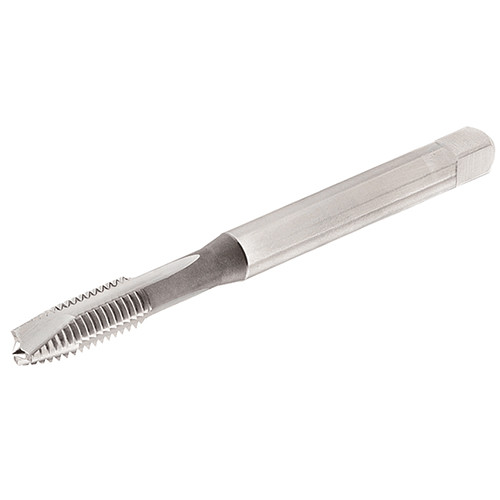

| 系列描述 | 高速钢带顶尖机用丝锥，用于英制粗牙螺纹，通用材料加工 | COO | Korea |
Shipping Info
包装重量
0.0140
