产品规格

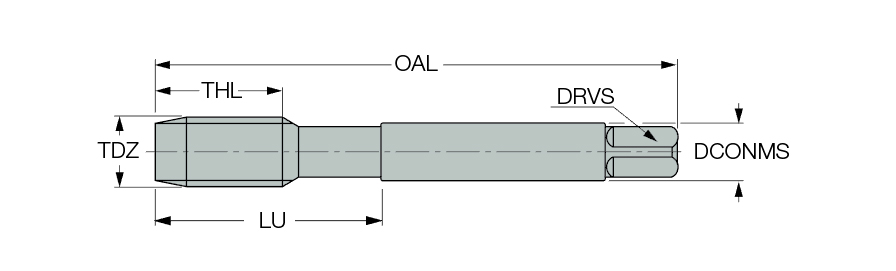

| Thread Diameter Size (TDZ) | M2.3 | 切削刃材质 | HSS |
| Thread Pitch (TP) | 0.4 mm | 涂层 | Uncoated |
| 螺纹标准 | THFT | | Drive Size (DRVS) | 2.1 mm |
| Overall Length (OAL) | 45 mm | 测量方式 | Metric |
| Thread Cutting Part Length (THL) | 8 mm | 等级 | HE |
| Usable Length (LU) | 13 mm | 螺纹尺寸 | M2.3 × 0.4 |
| Connection Diameter Machine Side (DCONMS) | 2.8 mm | 刀体材质 | HSS |
| Flute Count (NOF) | 3 | Thread Form Type (THFT) | M60 |
| 应用 | | 丝锥，用于浅通孔螺纹加工 | 丝锥，用于深通孔螺纹加工 | 用于浅通孔加工的丝锥 | 用于深通孔加工的丝锥 | | 单位 | M |
产品特性
| 系列描述 | DIN 13 含钴高速钢（M35）带顶尖机用丝锥，用于ISO公制粗牙螺纹，加工易切钢 | COO | Korea |
Shipping Info
包装重量
0.0030
