产品规格

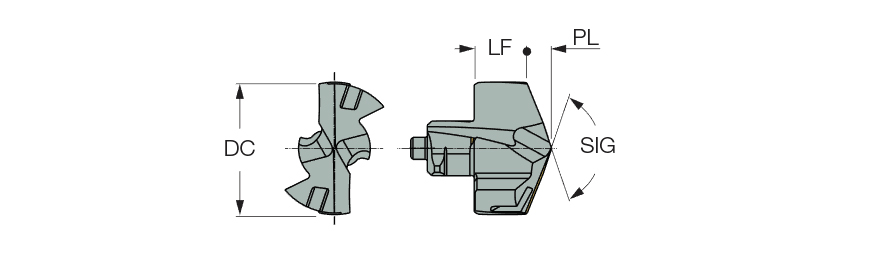

| Cutting Diameter (DC) | 13.7 mm | 测量方式 | Metric |
| 适用材料 | | 黑色金属 | | Insert Thickness (S) | 7.6 mm |
| 应用 | | 倒角 | 钻削 | | Point Length (PL) | 2.09 mm |
| 等级 | IC08 | Point Angle (SIG) | 140 Degrees |
| Tool Type | Drilling Heads | 涂层 | Uncoated |
| Insert Seat Size Code (SSC) | 13.0 | 刀体材质 | Carbide |
| Functional Length (LF) | 5.51 mm | 单位 | M |
| 切削刃材质 | Carbide |
产品特性

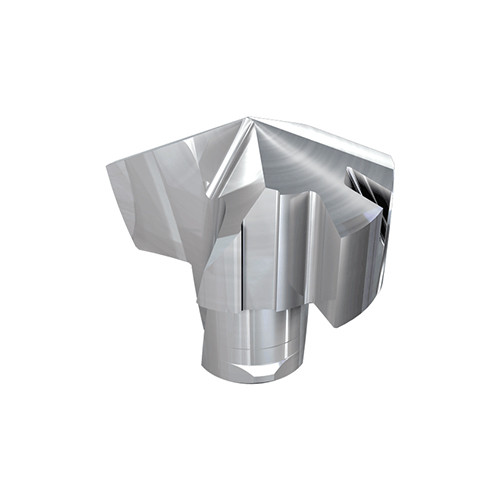

| 系列描述 | 可换头束魔变色龙钻头，用于DCN钻杆，加工ISO N类材料。钻头具有锋利的切削刃及前刀面抛光处理，尺寸间隔0.1mm | COO | Israel |
| 备注 | The drill is manufactured with a sharp cutting edge and polished flutes |
Shipping Info
包装重量
0.0120
