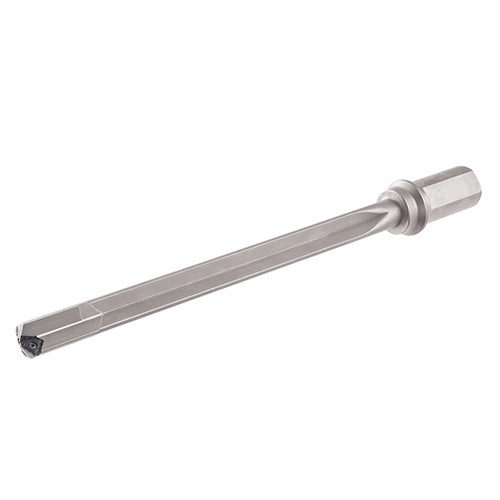

GD-DH 0.810-25D-I1.25-10
机夹式枪钻，安装TOGT三角形锯齿状刀片，有修光刃可获得优异的表面加工质量和高进给。可提供10, 15, 25倍径钻杆
Price: Log in For Price

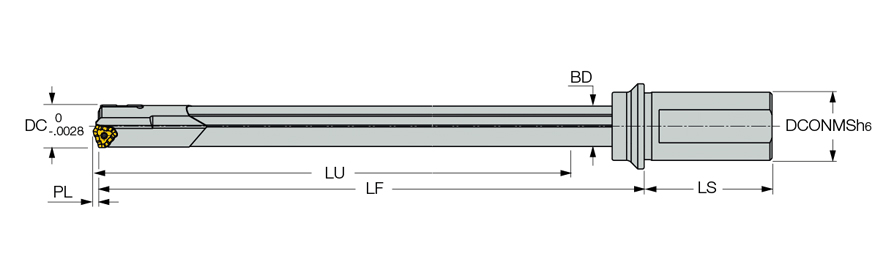

产品规格
| Cutting Diameter (DC) | 0.81″ | Overall Length (OAL) | 24.926″ |
| Usable Length (LU) | 20.8″ | Coolant Supply Property (CSP) | Coolant Thru |
| 应用 | | 枪钻 | 钻削 | | 测量方式 | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | 刀体材质 | Steel |
| Tool Type | Deep Hole / Gun Drill | 十进制 | 0.81″ |
| Shank Length (LS) | 2.36″ | 单位 | I |
| Functional Length (LF) | 22.44″ |
产品特性
| 系列描述 | 机夹式枪钻，安装TOGT三角形锯齿状刀片，有修光刃可获得优异的表面加工质量和高进给。可提供10, 15, 25倍径钻杆 | COO | Japan |
| 备注 | For inquiry form, pad and driver selection, click on More Info Note: Gundrills can be supplied with up to 95 length on request. Inserts and guide pads to be ordered separately (not included with the tools). Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole. Enter the guide hole slowly at a speed of 50 - 100 rpm. |
Shipping Info
包装重量
2.0393
