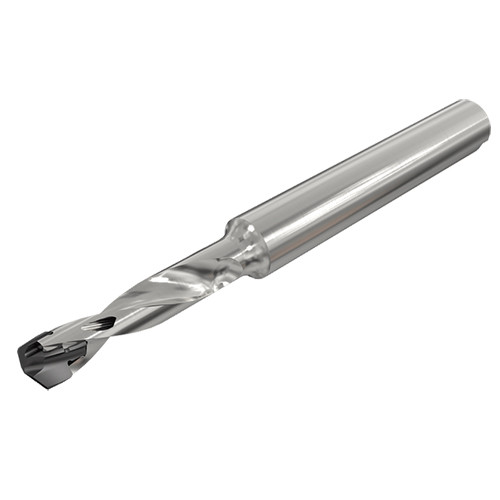

DCN 050-015-06C-3D
圆柱柄可换刀头式SUMOCHAM钻头，带内冷却通孔，钻深3XD。具有4种类型标准刀头钻削加工4种不同被加工材料组的特点。
Price: Log in For Price
产品规格

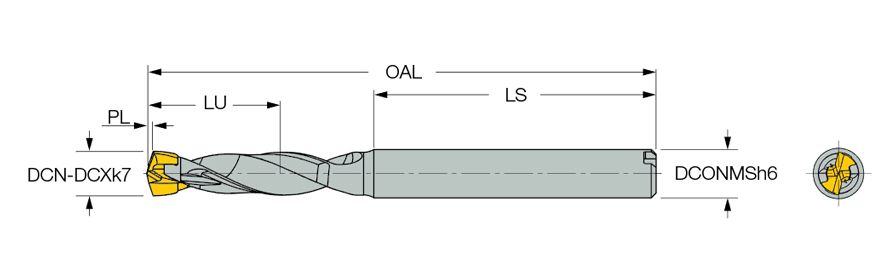

| Cutting Diameter (DC) | 5 mm | Shank Length (LS) | 35 mm |
| Usable Length (LU) | 15.73 mm | Coolant Supply Property (CSP) | Coolant Thru |
| 柄部形式 | Round | 测量方式 | Metric |
| 应用 | | 钻削 | | Master Insert Identification (MIID) | ICP 050 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Point Length (PL) | 0.73 mm |
| Insert Seat Size Code (SSC) | 5.0 | 刀体材质 | Steel |
| Cutting Diameter Minimum (DCN) | 5 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Cutting Diameter Maximum (DCX) | 5.49 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Protruding Length (LPR) | 27.33 mm | 单位 | M |
| Overall Length (OAL) | 61.3 mm |
产品特性
| 系列描述 | 圆柱柄可换刀头式SUMOCHAM钻头，带内冷却通孔，钻深3XD。具有4种类型标准刀头钻削加工4种不同被加工材料组的特点。 | COO | Israel |
| 备注 | 禁止使用小于钻杆卡口尺寸的钻头进行安装 |
Shipping Info
包装重量
0.0190
Related Documentation

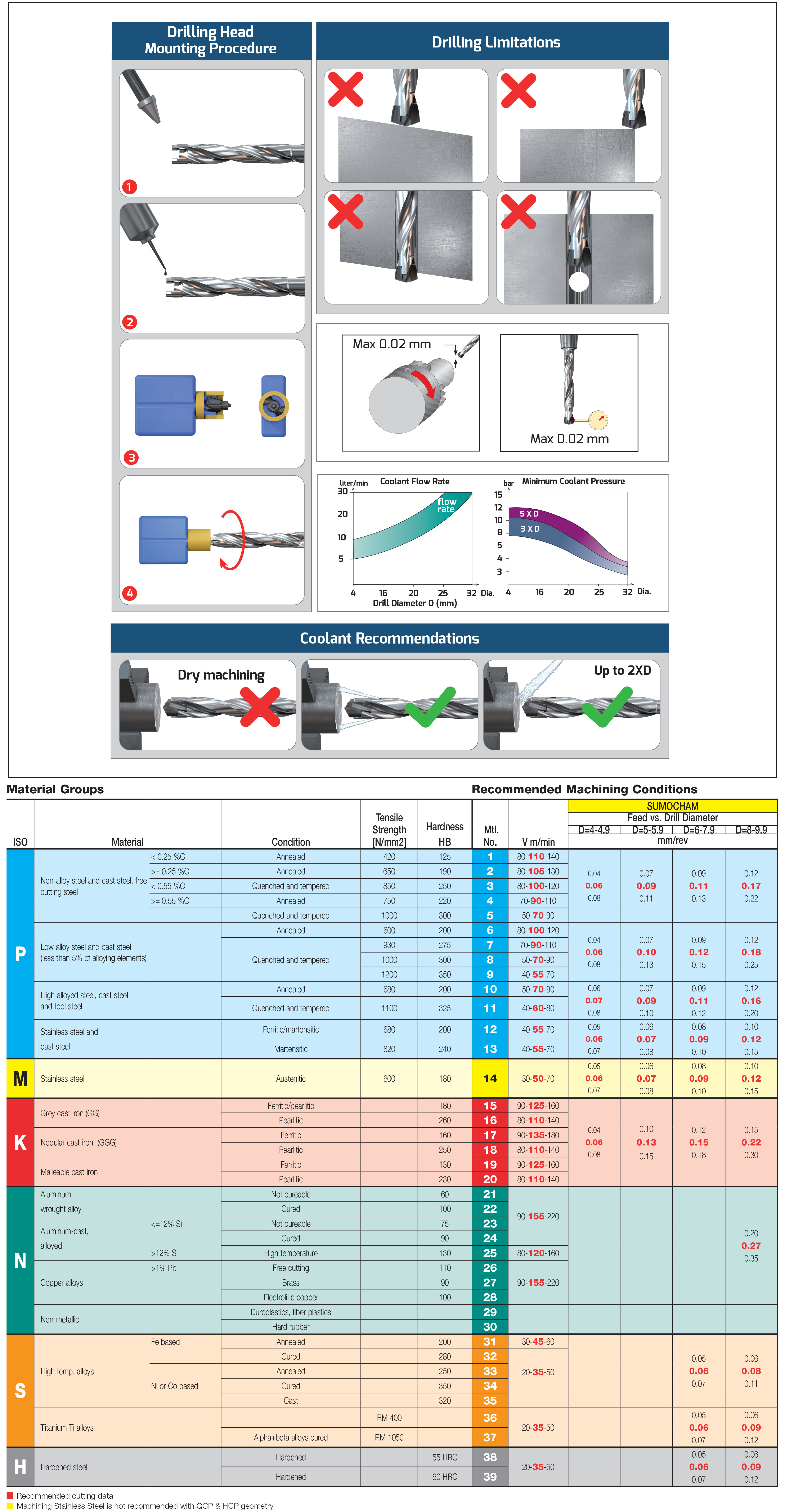

Do not mount smaller drilling heads than specificed range for drill body.
