产品规格

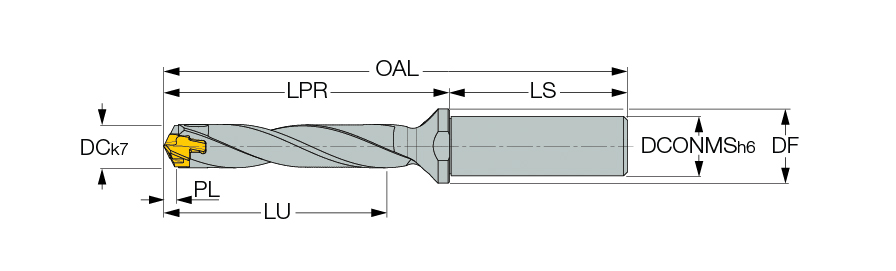

| Cutting Diameter (DC) | 12 mm | Overall Length (OAL) | 125 mm |
| Usable Length (LU) | 61.82 mm | Shank Length (LS) | 48 mm |
| 柄部形式 | Round | Coolant Supply Property (CSP) | Coolant Thru |
| 应用 | | 钻削 | | 测量方式 | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 120 |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Point Length (PL) | 1.82 mm |
| Insert Seat Size Code (SSC) | 12.0 | 刀体材质 | Steel |
| Cutting Diameter Minimum (DCN) | 12 mm | Flange Diameter (DF) | 20 mm |
| Cutting Diameter Maximum (DCX) | 12.49 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Protruding Length (LPR) | 77 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 74.82 mm | 单位 | M |
产品特性

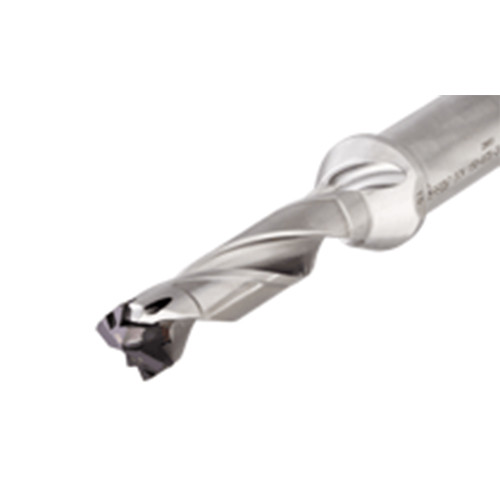

| 系列描述 | 可换头钻头，内冷，圆柱柄，钻深比：5XD。可夹持4种标准钻头，加工4类不同的材料组 | COO | Israel |
| 备注 | 禁止使用小于钻杆卡口尺寸的钻头进行安装 |
Shipping Info
包装重量
0.1490
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
