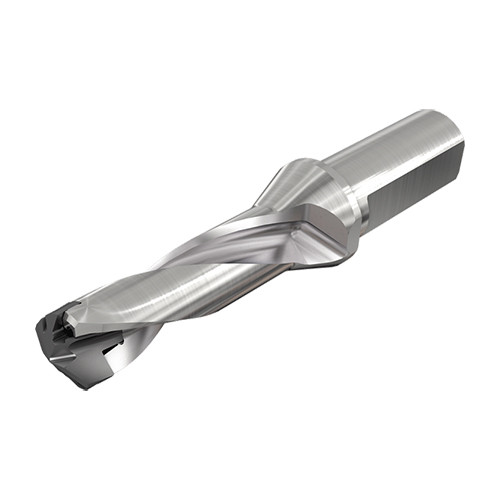

DCN 080-024-12A-3D
单平面削平柄可换刀头式SUMOCHAM钻头，带内冷却通孔，钻深3XD。具有4种类型标准刀头钻削加工4种不同被加工材料组的特点。
Price: Log in For Price
产品规格

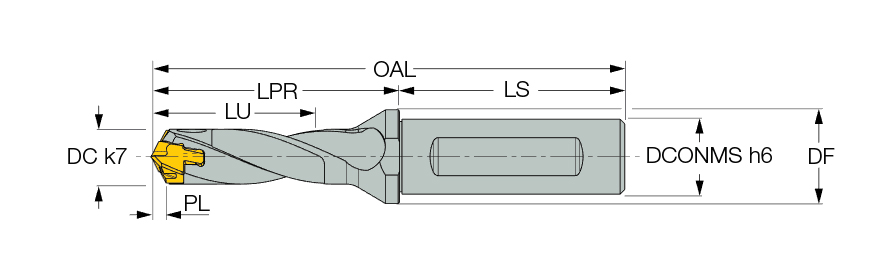

| Cutting Diameter (DC) | 8 mm | Overall Length (OAL) | 84.4 mm |
| Usable Length (LU) | 25.2 mm | Shank Length (LS) | 45 mm |
| 柄部形式 | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| 应用 | | 钻削 | | 测量方式 | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 080 |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Point Length (PL) | 1.2 mm |
| Insert Seat Size Code (SSC) | 8.0 | 刀体材质 | Steel |
| Cutting Diameter Minimum (DCN) | 8 mm | Flange Diameter (DF) | 16 mm |
| Cutting Diameter Maximum (DCX) | 8.49 mm | Body Diameter Reduced (BDRED) | 16 mm |
| Protruding Length (LPR) | 39.4 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 37.94 mm | 单位 | M |
产品特性
| 系列描述 | 单平面削平柄可换刀头式SUMOCHAM钻头，带内冷却通孔，钻深3XD。具有4种类型标准刀头钻削加工4种不同被加工材料组的特点。 | COO | Israel |
| 备注 | 在采用12倍径钻头钻削前，推荐采用1.5倍径的DCN钻头或中心钻加工出预钻孔。但装夹HCP刀头时则无需加工预钻孔。 |
Shipping Info
包装重量
0.0870
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
