产品规格

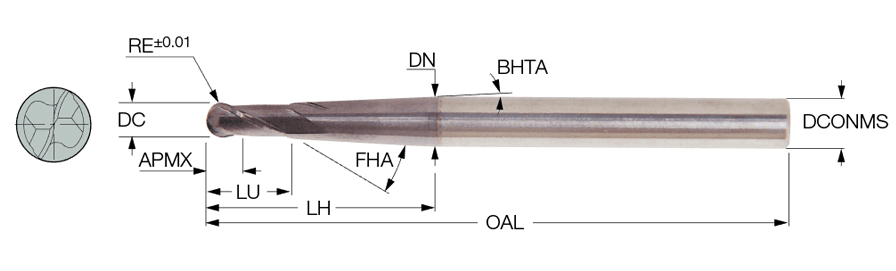

| Cutting Diameter (DC) | 10 mm | 应用 | | 仿形铣 | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Corner Radius (RE) | 5 mm |
| Depth of Cut Maximum (APMX) | 18 mm | Neck Diameter (DN) | 12 mm |
| Overall Length (OAL) | 110 mm | Body Half Taper Angle (BHTA) | 3 Degrees |
| 切削刃材质 | Carbide | 等级 | IC903 |
| 涂层 | AlTiN | Tool Type | Solid ball nose |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | 刀体材质 | Carbide |
| 柄部形式 | Round | 测量方式 | Metric |
| Usable Length (LU) | 21 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| 适用材料 | | 钢 | 不锈钢 | 铸铁 | 硬材料 | 高温合金 | | 单位 | M |
产品特性
| 系列描述 | 2齿，30°螺旋角球头立铣刀，带锥度及缩颈，用于加工硬度＜65HRC的材料 | 系列名称 | EB-A2 (tapered flute & neck) |
| COO | China | 品牌 | Iscar |
Shipping Info
包装重量
0.1668
名字
Ballnose End Mills
系列名称
EB-A2 (tapered flute & neck)
品牌
Iscar
