产品规格

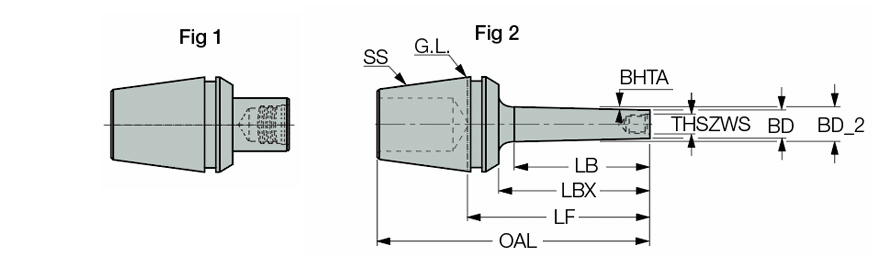

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T05 | Body Diameter (BD) | 7.6 mm |
| Overall Length (OAL) | 28.5 mm | Functional Length (LF) | 16.1 mm |
| Shank Size (SS) | ER11 | 测量方式 | Metric |
| Body Length Maximum (LBX) | 10.5 mm | 刀体材质 | Steel |
| Tool Type | Spring Collets | 单位 | M |
产品特性
| 系列描述 | 整体ER卡簧接柄，用于连接变形金刚铣刀头 | 系列名称 | MM S-ER |
| 备注 | Do not apply lubricant to the threaded connection. For adaptation click on More Info. When a rigid ER collet is assembled in an ER holder, the actual protruding length of the holder becomes shorter by 2.0 mm for ER20 and by 3.0 mm for ER25/ER32 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0240
名字
Solid End Mill Shanks
系列名称
MM S-ER
品牌
Iscar
