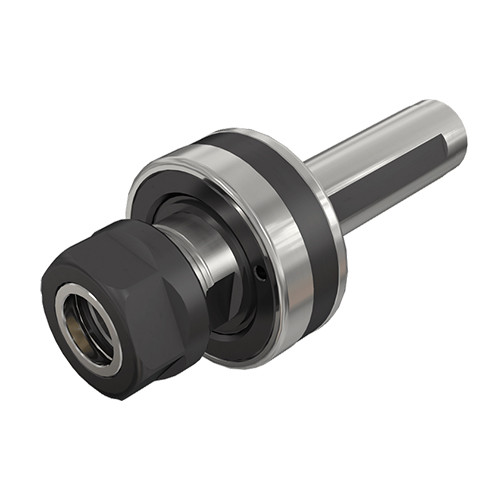

GFI ST25 ER32

Name: GFI ST25 ER32
Brand: Straight Shank
SKU: ISC4548005
Price: 9914.27 RMB
Availability: InStock

带圆柱柄的浮动铰刀DIN6499标准筒夹

项# ISC4548005

品牌名称: Iscar

制造商号: 4548005

产品规格

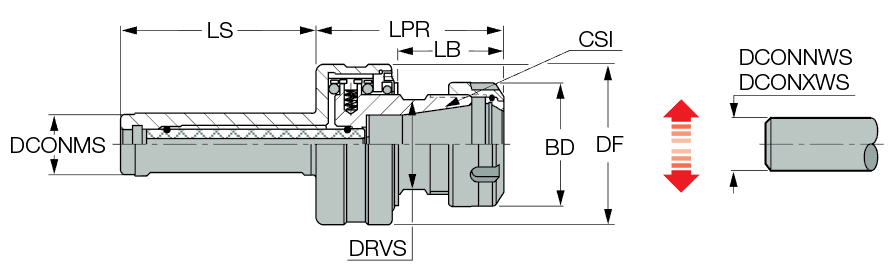

Connection Size (CSI)	ER32	Connection Diameter Maximum Workpiece Side (DCONXWS)	20 mm
Body Diameter (BD)	50 mm	Body Length (LB)	45.9 mm
Connection Diameter Machine Side (DCONMS)	25 mm	测量方式	Metric
Flange Diameter (DF)	65 mm	Shank Length (LS)	80 mm
Protruding Length (LPR)	76.9 mm	Overall Length (OAL)	156.9 mm
Tool Type	Cylindrical Shanks	刀体材质	Steel
Radial Float (RFI)	0.8 mm	单位	M
Connection Diameter Minimum Workpiece Side (DCONNWS)	2 mm

包装重量

1.3030

名字

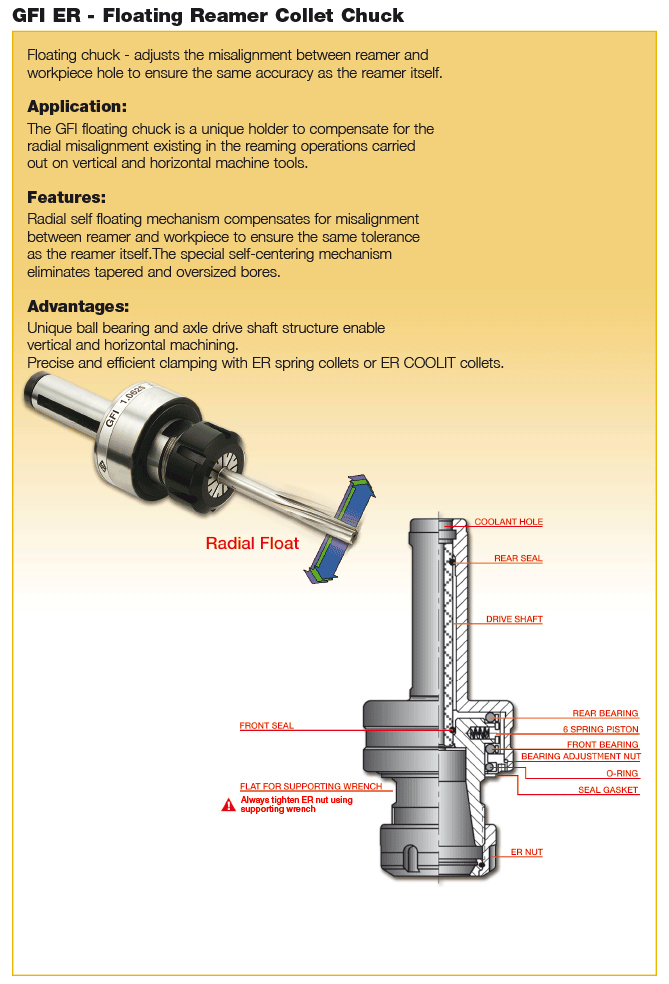

Reamer Holders

系列名称

GFI ST-ER

品牌

Iscar
