产品规格

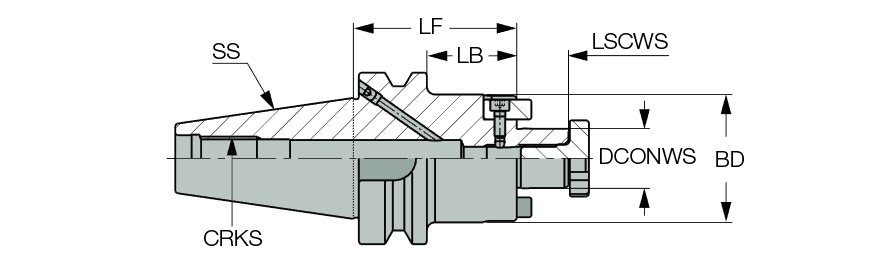

| Connection Diameter Machine Side (DCONMS) | 40 mm | Tool Type | BT |
| Connection Diameter Workpiece Side (DCONWS) | 32 mm | 测量方式 | Metric |
| Shank Size (SS) | 40 | 刀体材质 | Steel |
| Functional Length (LF) | 60 mm | Connection Code Machine Side (CCMS) | BT |
| Body Diameter (BD) | 65.5 mm | 单位 | M |
| Clamping Length Workpiece Side (LSCWS) | 24 mm |
产品特性
| 系列描述 | BT MAS-403 AD型ISO 3937套式铣刀柄 | 系列名称 | BT-SEM |
| 备注 | 对于带内冷却通孔的刀柄，相关COOLANT SET冷却套装组件需通过附件渠道订购（仅适配于相关刀具） | 品牌 | Iscar |
| COO | Turkey |
Shipping Info
包装重量
2.1910
名字
Shell Mill Holders
系列名称
BT-SEM
品牌
Iscar
