产品规格

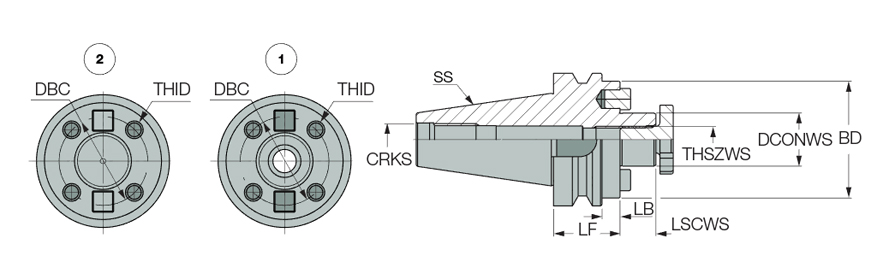

| Connection Diameter Machine Side (DCONMS) | 50 mm | Clamping Length Workpiece Side (LSCWS) | 27 mm |
| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Tool Type | BT |
| Shank Size (SS) | 50 | 测量方式 | Metric |
| Functional Length (LF) | 50 mm | 刀体材质 | Steel |
| Body Diameter (BD) | 88 mm | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | Coolant Thru | 单位 | M |
产品特性
| 系列描述 | 带BT MAS-403 A/AD锥柄的套式铣刀刀柄 | 系列名称 | BT-FC-FM |
| 备注 | 产品适用的详细信息，请点击“更多信息” | 品牌 | Iscar |
| COO | Italy |
Shipping Info
包装重量
4.6350
名字

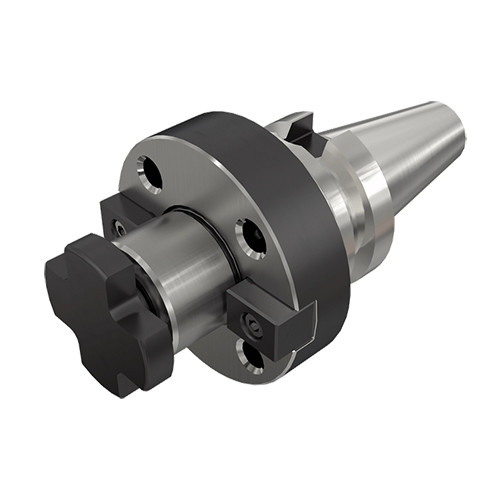

Shell Mill Holders
系列名称
BT-FC-FM
品牌
Iscar
