BT40 ER32 SHORT
SHORTIN short ER collet chucks with BT MAS-403 AD tapered shanks.
Price: Log in For Price
产品规格

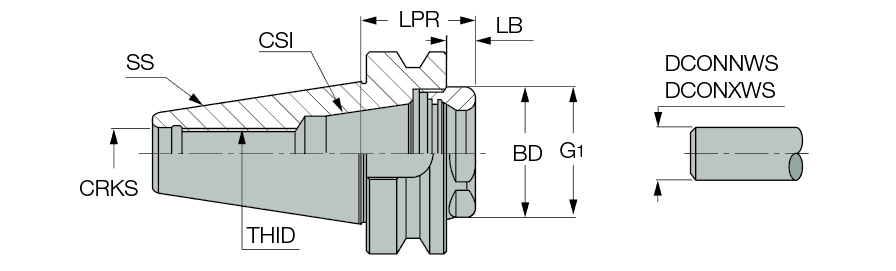

| Shank Size (SS) | 40 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Connection Size (CSI) | ER32 | 测量方式 | Metric |
| Body Diameter (BD) | 40 mm | 刀体材质 | Steel |
| Protruding Length (LPR) | 36.5 mm | Connection Code Machine Side (CCMS) | BT |
| Tool Type | BT | 单位 | M |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
产品特性
| 系列描述 | SHORTIN short ER collet chucks with BT MAS-403 AD tapered shanks. | 系列名称 | BT-ER-SHORT |
| 备注 | For Adaptation Click on More Info. B is the designation for coolant through flange. | 品牌 | Iscar |
| COO | Turkey |
Shipping Info
包装重量
0.8420
名字
弹簧筒夹夹头
系列名称
BT-ER-SHORT
品牌
Iscar
