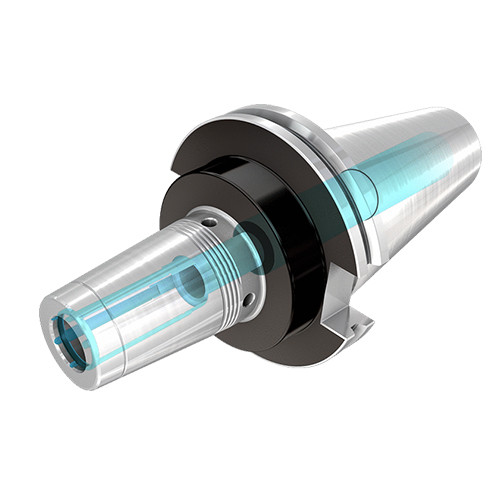

CAT50 SRKIN 7/16X3.750 CX
Thermal shrink chucks with Caterpillar Form AD tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance
Price: Log in For Price
产品规格

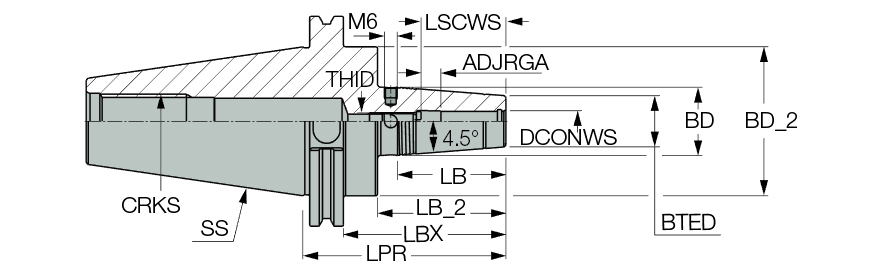

| Connection Diameter Workpiece Side (DCONWS) | 0.438″ | Protruding Length (LPR) | 3-3/4″ |
| Shank Size (SS) | 50 | Body Length Maximum (LBX) | 3″ |
| Body Length (LB) | 2.001″ | Clamping Length Workpiece Side (LSCWS) | 1.76″ |
| Body Length_2 (LB_2) | 2.37″ | 测量方式 | Inch |
| Body Diameter (BD) | 1.26″ | 刀体材质 | Steel |
| Body Diameter_2 (BD_2) | 2.752″ | 单位 | I |
| Body Taper End Diameter (BTED) | 0.945″ |
产品特性
| 系列描述 | Thermal shrink chucks with Caterpillar Form AD tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance | 系列名称 | CAT-SRKIN-CX |
| 备注 | Preset screw CX allows supply of coolant via JET groove - do not remove | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
7.3634
名字
Shrink Fit Holders
系列名称
CAT-SRKIN-CX
品牌
Iscar
