ER32 SRF 4X50

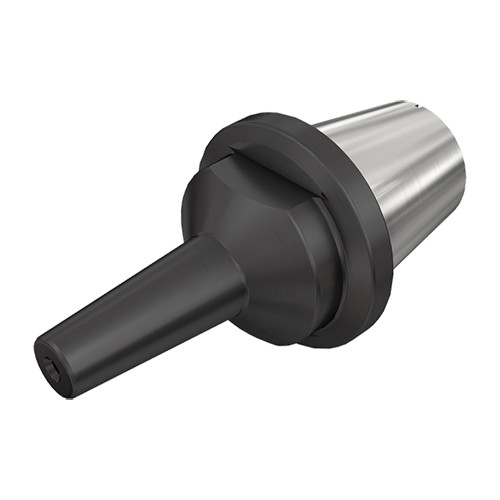

SHRINKIN thermal shrink chuck with a CLICKIN quick change adaptation. To be used for carbide tools only.
Price: Log in For Price
产品规格

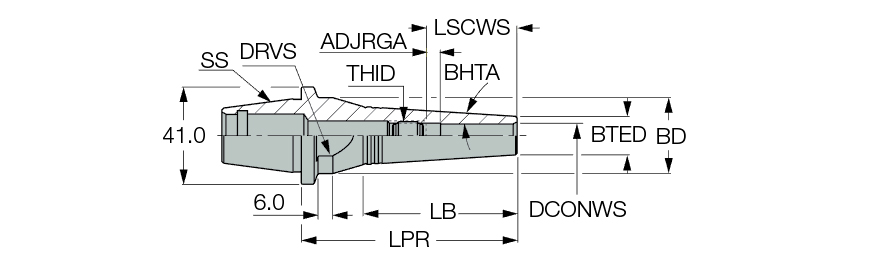

| Connection Diameter Machine Side (DCONMS) | 32 mm | 测量方式 | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 4 mm | Drive Size (DRVS) | 27 mm |
| Shank Size (SS) | 32 SRF | Tool Type | Spring Collets |
| Body Length (LB) | 31 mm | 刀体材质 | Steel |
| Protruding Length (LPR) | 50 mm | 单位 | M |
| Overall Length (OAL) | 81 mm |
产品特性
| 系列描述 | SHRINKIN thermal shrink chuck with a CLICKIN quick change adaptation. To be used for carbide tools only. | 系列名称 | ER-SRF |
| 备注 | 锁紧力矩：24Kgxm 仅适用于硬质合金刀具。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.2510
名字
Shrink Fit Holders
系列名称
ER-SRF
品牌
Iscar
