HSK A63 SRK 1/2X3.250
SHRINKIN, thermal chucking collets with HSK DIN69893 Form A tapered shanks for solid carbide tools only.
Price: Log in For Price
产品规格

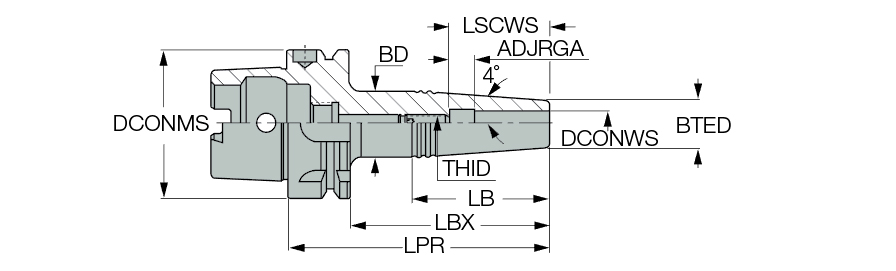

| Connection Diameter Machine Side (DCONMS) | 2.48″ | 测量方式 | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 1/2″ | Tool Type | HSK |
| Shank Size (SS) | 63 | 刀体材质 | Steel |
| Body Length (LB) | 2.815″ | Connection Code Machine Side (CCMS) | HSK |
| Protruding Length (LPR) | 4.274″ | 单位 | I |
| Overall Length (OAL) | 5.534″ |
产品特性
| 系列描述 | SHRINKIN, thermal chucking collets with HSK DIN69893 Form A tapered shanks for solid carbide tools only. | 系列名称 | HSK A-SRK |
| 备注 | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). Remove preset screw for coolant through. For shank dimensions, click on More Info. | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
2.2046
名字
Shrink Fit Holders
系列名称
HSK A-SRK
品牌
Iscar
