DIN69871 50 SRKIN 10X 80
Thermal shrink chucks with integral DIN 69871 form AD taper shank for solid carbide HSS and steel tools with h6 tolerance.
Price: Log in For Price
产品规格

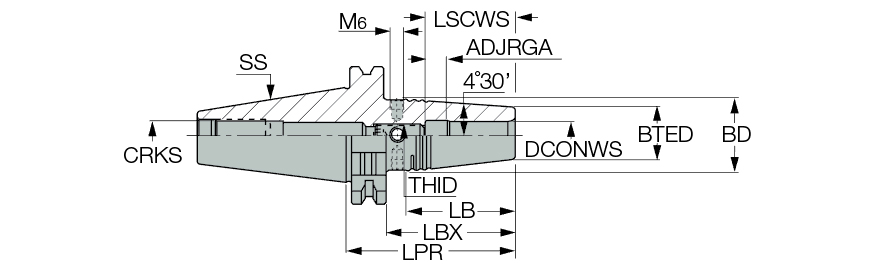

| Connection Diameter Machine Side (DCONMS) | 50 mm | 测量方式 | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 10 mm | Tool Type | DIN 69871 |
| Shank Size (SS) | 50 | 刀体材质 | Steel |
| Body Length (LB) | 51 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Protruding Length (LPR) | 80 mm | 单位 | M |
| Overall Length (OAL) | 181.75 mm |
产品特性
| 系列描述 | Thermal shrink chucks with integral DIN 69871 form AD taper shank for solid carbide HSS and steel tools with h6 tolerance. | 系列名称 | DIN69871-SRKIN |
| 备注 | Use only inductive heating device for SRKIN holders ISCAR cannot guarantee an unbalance value less than 1 gr x mm For shrink units information, Click on More Info | 品牌 | Iscar |
| COO | India |
Shipping Info
包装重量
2.9360
名字
Shrink Fit Holders
系列名称
DIN69871-SRKIN
品牌
Iscar
