HSK A63 SRKIN8X120
Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide, HSS and steel tools.
Price: Log in For Price
产品规格

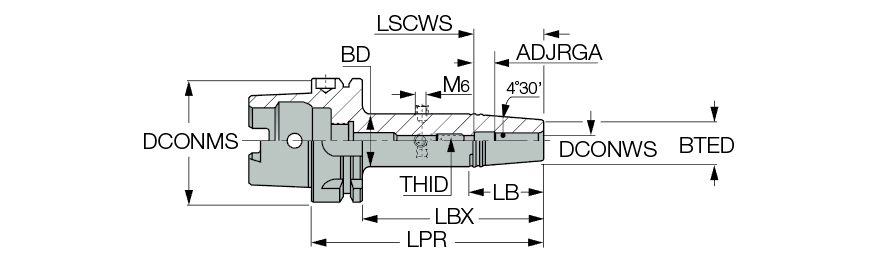

| Connection Diameter Machine Side (DCONMS) | 63 mm | 测量方式 | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Tool Type | HSK |
| Shank Size (SS) | 63 | 刀体材质 | Steel |
| Body Length (LB) | 38 mm | Connection Code Machine Side (CCMS) | HSK |
| Protruding Length (LPR) | 120 mm | 单位 | M |
| Overall Length (OAL) | 152 mm |
产品特性
| 系列描述 | Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide, HSS and steel tools. | 系列名称 | HSK A-SRKIN |
| 备注 | 带内冷的HSK主轴使用冷却液的时候必须外接冷却管（需要单独订购） 仅对SRKIN夹持部位使用装置感应加热 可应用于硬质合金、高速钢、钢制刀具 ISCAR不保证不平衡量低于1 gr x mm 关于热缩装置，点击“更多信息” 预置的CX螺钉可使冷却液通过喷射孔喷出-不要取出 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
1.0630
名字
Shrink Fit Holders
系列名称
HSK A-SRKIN
品牌
Iscar
