产品规格

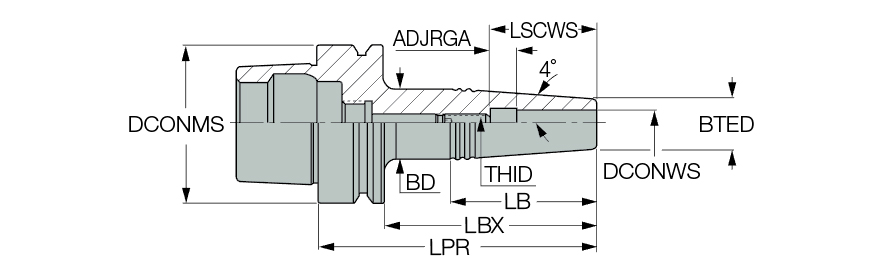

| Connection Diameter Machine Side (DCONMS) | 1.575″ | 测量方式 | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 1/2″ | Tool Type | HSK |
| Shank Size (SS) | 40 | 刀体材质 | Steel |
| Body Length (LB) | 1.665″ | Connection Code Machine Side (CCMS) | HSK |
| Protruding Length (LPR) | 2.537″ | 单位 | I |
| Overall Length (OAL) | 3.324″ |
产品特性
| 系列描述 | 带DIN69893标准E型HSK刀柄的SHRINKIN热缩刀柄，仅适用于硬质合金刀具。 | 系列名称 | HSK E-SRK |
| 备注 | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, click on More Info. | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.7562
名字
Shrink Fit Holders
系列名称
HSK E-SRK
品牌
Iscar
