ER25 SRK 6X60 JET2
SHRINKIN thermal shrinking chuck with three internal cooling jets and an integral ER collet. To be used for carbide tool only.
Price: Log in For Price
产品规格

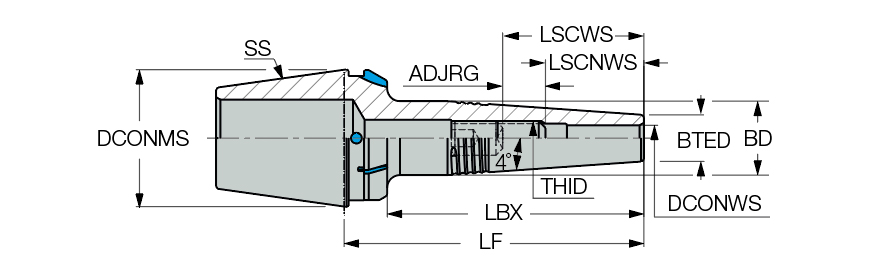

| Connection Diameter Machine Side (DCONMS) | 25 mm | Clamping Length Workpiece Side (LSCWS) | 24 mm |
| Connection Diameter Workpiece Side (DCONWS) | 6 mm | 测量方式 | Metric |
| Shank Size (SS) | ER25 | Tool Type | Spring Collets |
| Body Length (LB) | 44.5 mm | 刀体材质 | Steel |
| Body Length Maximum (LBX) | 60 mm | 单位 | M |
| Overall Length (OAL) | 95 mm |
产品特性
| 系列描述 | SHRINKIN thermal shrinking chuck with three internal cooling jets and an integral ER collet. To be used for carbide tool only. | 系列名称 | ER-SRK-JET2 |
| 备注 | 仅用于硬质合金刀具 使用刀具内冷时，须取下预置螺钉。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.1530
名字
Shrink Fit Holders
系列名称
ER-SRK-JET2
品牌
Iscar
