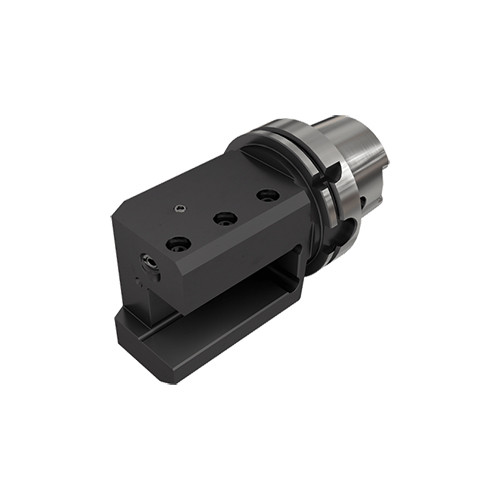

HSK A63WH ASHL 25 1
Square shank tool adapters with HSK exchangeable shanks for turn-mill machines.
Price: Log in For Price

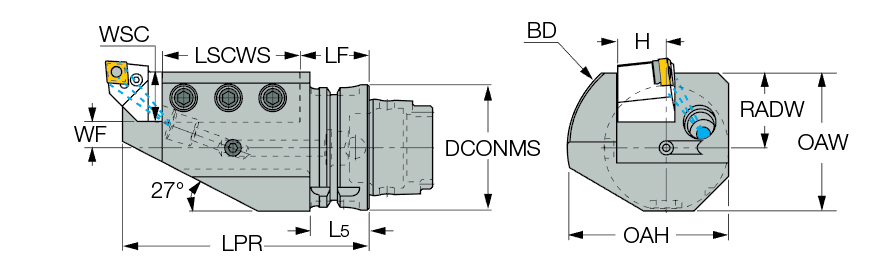

产品规格
| Protruding Length (LPR) | 125 mm | 测量方式 | Metric |
| Connection Diameter Machine Side (DCONMS) | 63 mm | 刀体材质 | Steel |
| Shank Width (B) | 25 mm | Overall Height (OAH) | 82 mm |
| Body Length (LB) | 30 mm | Overall Length (OAL) | 157 mm |
| Functional Width (WF) | 13 mm | Connection Code Machine Side (CCMS) | HSK |
| Shank Size (SS) | 63 | 单位 | M |
| Tool Type | HSK -T (ISO 12164-3) | Overall Width (OAW) | 70 mm |
产品特性
| 系列描述 | Square shank tool adapters with HSK exchangeable shanks for turn-mill machines. | 系列名称 | HSK A-WH-ASHR/L-1 |

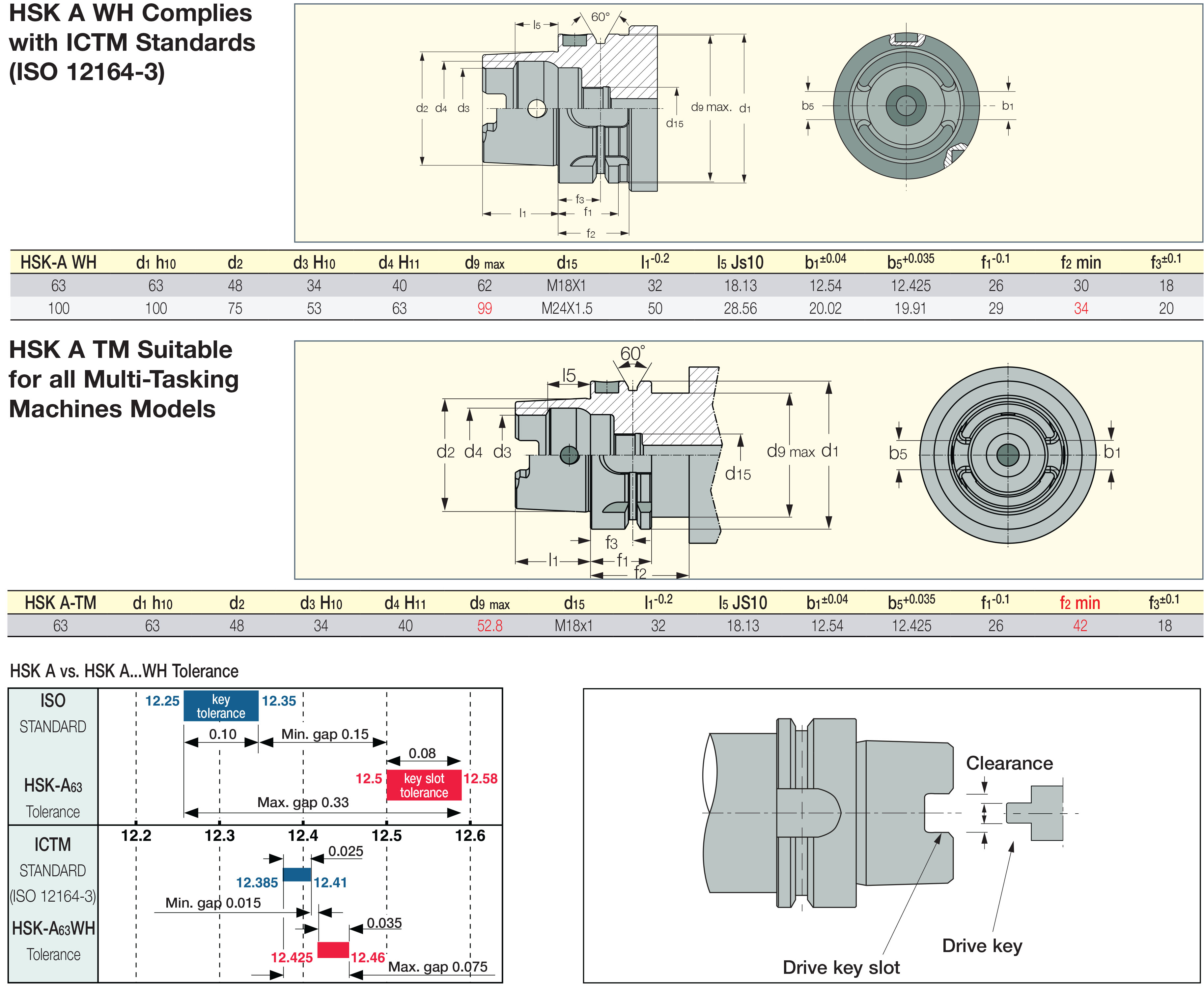

| 备注 | Complies with ICTM standard (ISO 12164-3) Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) For shank dimensions, click on More Info | 品牌 | Iscar |
| COO | Italy |
Shipping Info
包装重量
3.2460
名字
Adapters
系列名称
HSK A-WH-ASHR/L-1
品牌
Iscar
Related Documentation
Coolant Nozzle Adjustment Instructions: 1- Open the nut by turning it approximately three-quarters of a turn counter clockwise. 2- Adjust the coolant nozzle eye so that it will direct thecoolant to the area of the cutting edge. 3- Close the nut by turning it approximately three-quartersof a turn clockwise. 4- The special (WRENCH NOZZLE HP M12) key should be used.
