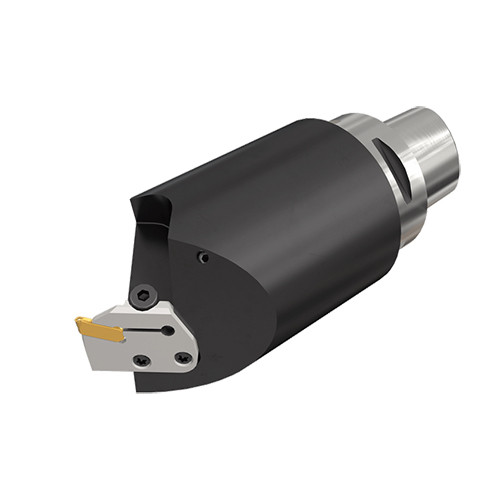

C6 MAHDR-45
CAMFIX (ISO 26623-1标准）可换式刀柄，用于夹持应用于切断、切槽、车削及端面切削的MODU-GRIP刀夹。用于以45°偏角装夹于车铣复合中心。
Price: Log in For Price
产品规格

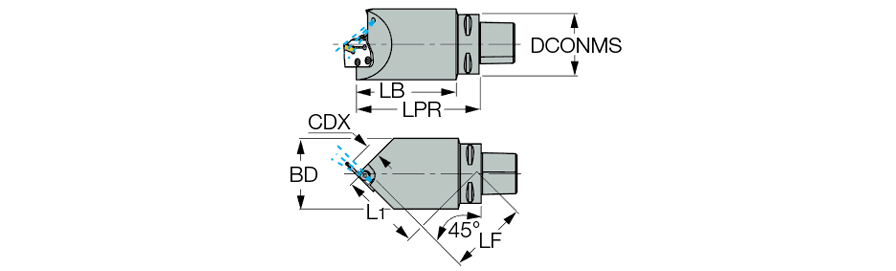

| Protruding Length (LPR) | 130 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Connection Diameter Machine Side (DCONMS) | 63 mm | 测量方式 | Metric |
| Body Diameter (BD) | 75 mm | 刀体材质 | Steel |
| Body Length (LB) | 91.9 mm | Overall Length (OAL) | 168 mm |
| Shank Size (SS) | 63 | 单位 | M |
产品特性
| 系列描述 | CAMFIX (ISO 26623-1标准）可换式刀柄，用于夹持应用于切断、切槽、车削及端面切削的MODU-GRIP刀夹。用于以45°偏角装夹于车铣复合中心。 | 系列名称 | C#-MAHDR-45 |
| 备注 | 适用于车铣复合机床 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
3.8830
名字
Adapters
系列名称
C#-MAHDR-45
品牌
Iscar
Related Documentation

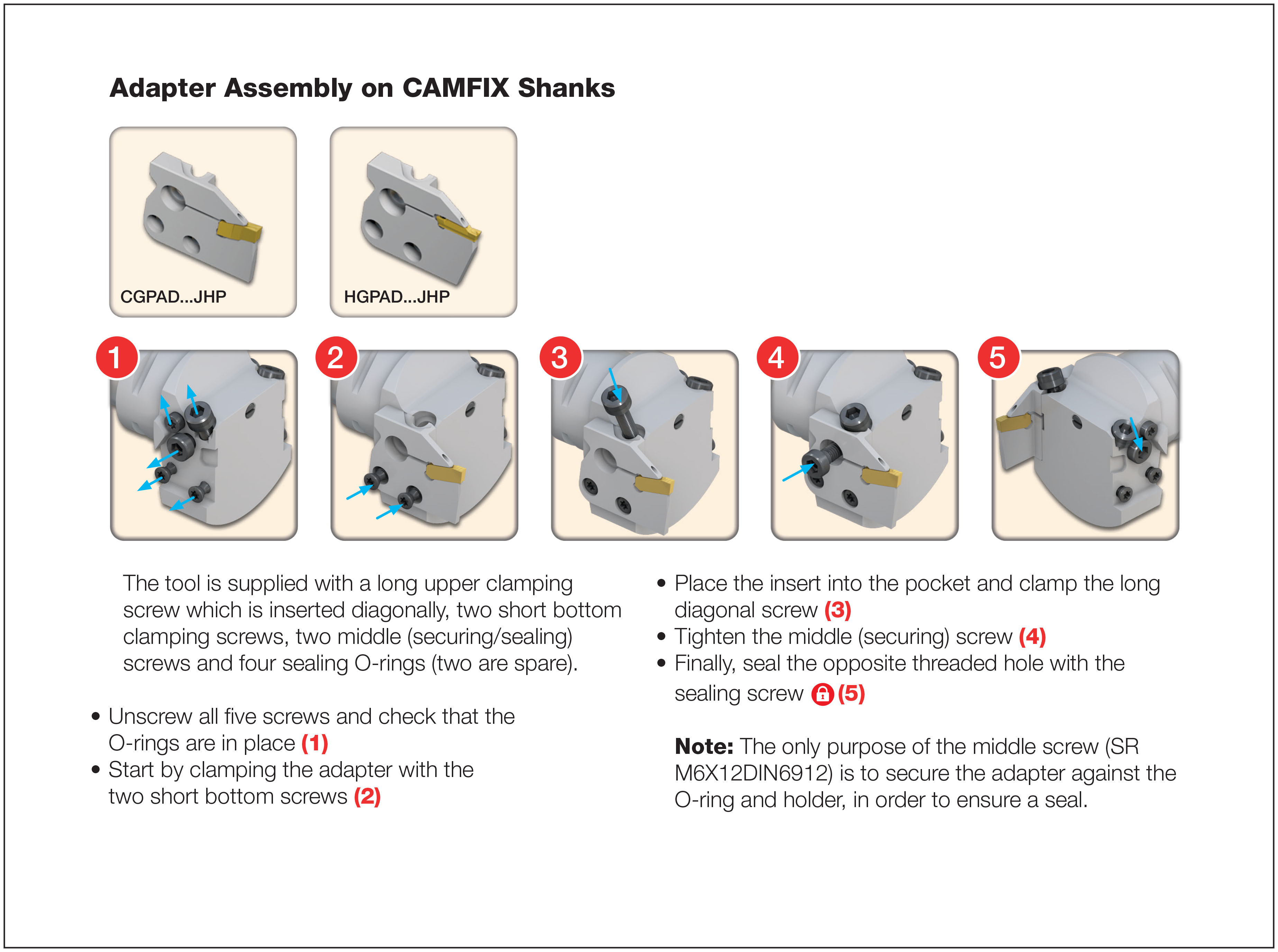

SR14-519-supplied screw in the attached plastic bag for GAD, GAM, DGAD, HGAD and PCADR/L adapters. SR M6X20-XT-supplied screws with the tools in the plastic bag for CGPAD, HGPAD, TGPAD and FGPAD adapters. Sealing Screw used to prevent chips from entering the upper locking screw hole of adapter above.
