产品规格

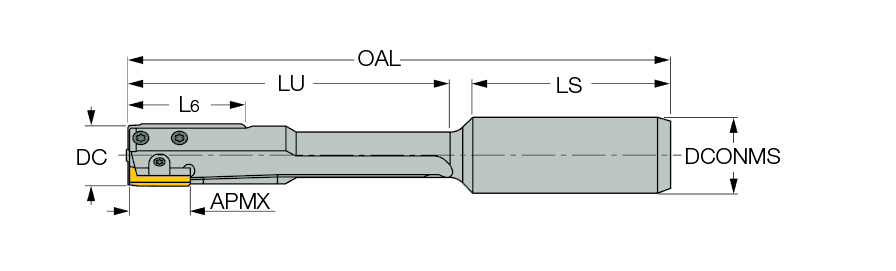

| Cutting Diameter (DC) | 29 mm | Overall Length (OAL) | 221 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Shank Length (LS) | 56 mm |
| 应用 | | 盲孔 | 盲孔 & 垂直孔 | 盲孔 & 径向孔 | | 刀体材质 | Steel |
| Usable Length (LU) | 160 mm | Tool Type | Indexable Reaming Tools |
| Insert Seat Size Code (SSC) | 4.0 | 测量方式 | Metric |
| Depth of Cut Maximum (APMX) | 22.5 mm | 单位 | M |
产品特性
| 系列描述 | 可换式单刃铰刀，用于盲孔 | COO | Italy |
| 备注 | 用户指南和切削参数，请点击“更多” |
Shipping Info
包装重量
0.1000
