产品规格

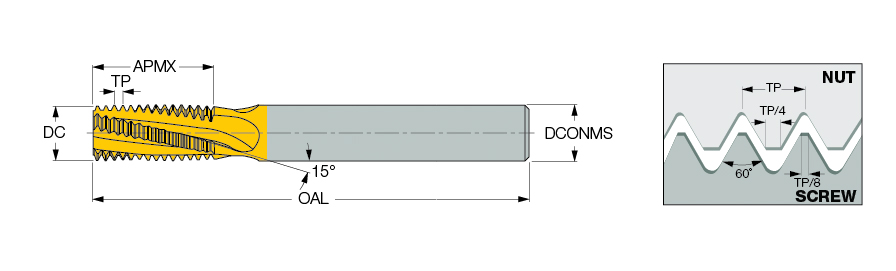

| Thread Pitch (TP) | 2 mm | Flute Helix Angle (FHA) | 15 Degrees |
| 螺纹标准 | MC |MF |THFT | | 切削刃材质 | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm | 测量方式 | Metric |
| Cutting Diameter (DC) | 10 mm | 等级 | IC908 |
| Overall Length (OAL) | 100 mm | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 39 mm |
| 柄部形式 | Round | 刀体材质 | Carbide |
| 涂层 | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| 应用 | | 内孔螺纹铣削 | | Thread Form Type (THFT) | M60 |
| 适用材料 | | 钢 | 不锈钢 | 铸铁 | 硬材料 | 高温合金 | | 单位 | M |
产品特性
| 系列描述 | 用于ISO内螺纹加工的整体硬质合金立铣刀 | COO | Israel |
Shipping Info
包装重量
0.1000
