CCMW 09T304-M2 IB10H

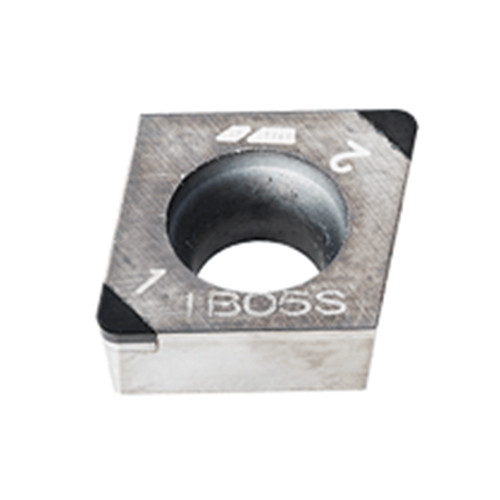

80° positive rhombic inserts with 2 CBN tips for machining hardened steel, sintered metals and high temperature alloys.
Price: Log in For Price
产品规格
| 适用材料 | | 硬材料 | | Tool Type | Turn Positive Inserts |
| 应用 | | ITSBORE 镗刀系统 | 内孔背车，80°刀尖角菱形刀片 | | 最小切削深度 | 0.05 mm |

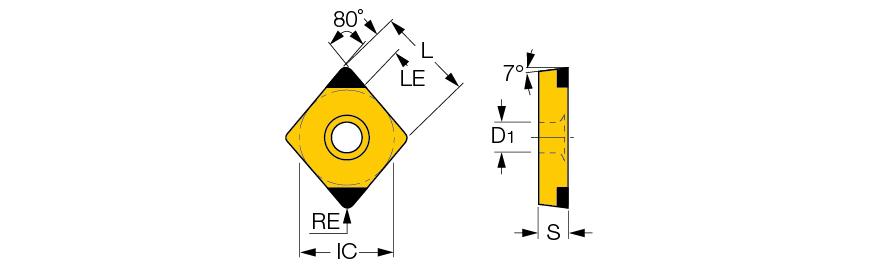

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 0.5 mm |
| 刀片尺寸 | 3-1-M2 | 最小车削进给(ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 9.7 mm | Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | 断屑槽型 | M |
| 切削刃材质 | PCBN | 测量方式 | Metric |
| 涂层 | Uncoated | 刀体材质 | Carbide |
| 等级 | IB10H | 单位 | M |
| Fixing Hole Diameter (D1) | 4.4 mm |
产品特性
| 系列描述 | 80° positive rhombic inserts with 2 CBN tips for machining hardened steel, sintered metals and high temperature alloys. | 系列名称 | CCGW/CCMW-2 (CBN) |
| 备注 | 尺寸及公差，点击“更多信息”。 | 品牌 | Iscar |
| COO | Japan |
Shipping Info
包装重量
0.0110
名字
Turning Indexable Inserts
系列名称
CCGW/CCMW-2 (CBN)
品牌
Iscar
