产品规格
| 适用材料 | | 钢 | 不锈钢 | | 等级 | IC8250 |
| 应用 | | Ext. 80° Trigon 95° Approach | Ext. Trigon 18.5° Approach | | Tool Type | Turn Negative Inserts |
| 刀片类型 | WOMG | 最小切削深度 | 1 mm |

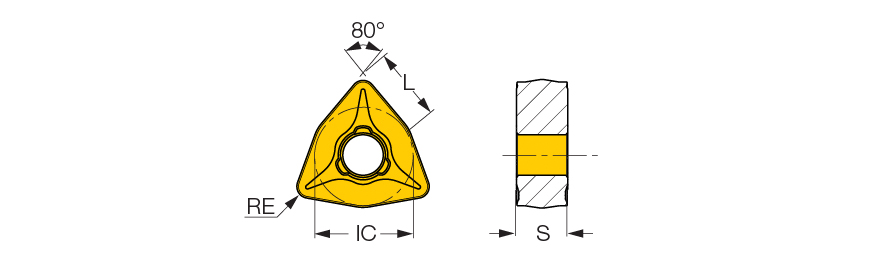

| Corner Radius (RE) | 1.6 mm | Depth of Cut Maximum (APMX) | 2.8 mm |
| 刀片尺寸 | 100716 | 最小车削进给(ft(min)) | 1.5 mm/rev |
| Cutting Edge Length (L) | 10.86 mm | Max. Turning Feed (ft(max)) | 3 mm/rev |
| Insert Thickness (S) | 7.94 mm | 断屑槽型 | T3P |
| Inscribed Circle Diameter (IC) | 15.88 mm | 测量方式 | Metric |
| 切削刃材质 | Carbide | 刀体材质 | Carbide |
| 涂层 | TiCN+Al2O3+TiN | 单位 | M |
产品特性

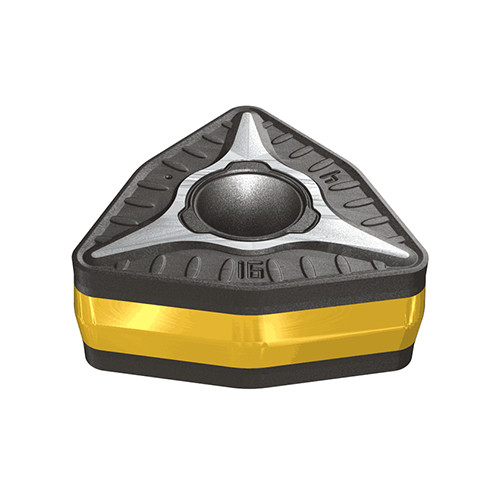

| 系列描述 | Double-sided 6° negative side flank trigon inserts for high feed turning of steel. | 系列名称 | WOMG-10-T3P-IQ |

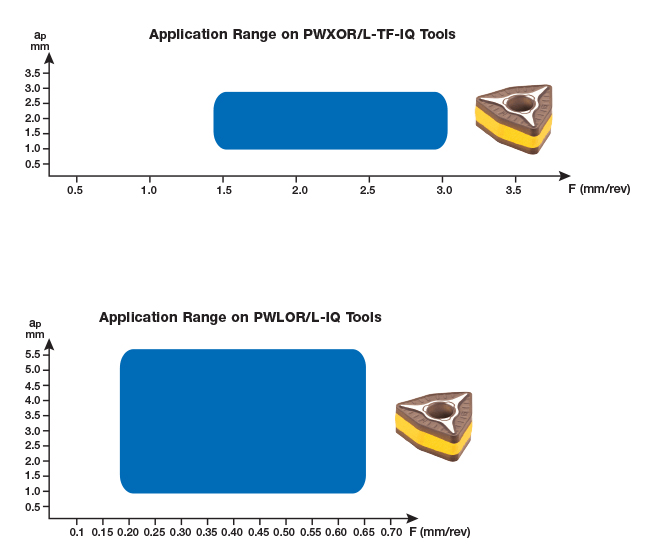

| 备注 | The specified machining recommendations in the above table are valid only for PWXOR/L-TF-IQ tools. For PWLOR/L-IQ tools: ap= 3-7 mm, ft= 0.3-0.8 mm/rev. | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0274
名字
Turning Indexable Inserts
系列名称
WOMG-10-T3P-IQ
品牌
Iscar
