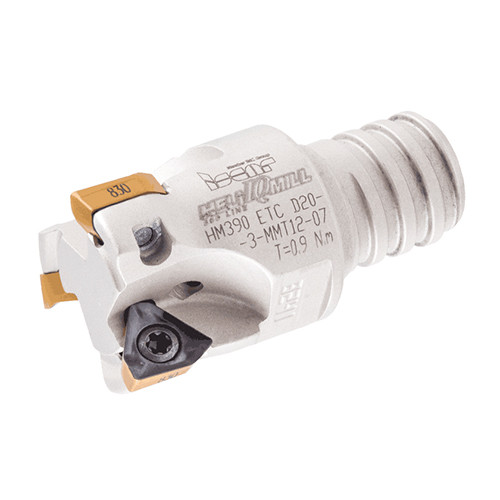

HM390 ETC D.625-2MMT10-07
变形金刚（MULTI-MASTER）模块螺纹连接式90°主偏角立铣刀，夹持带3个螺旋切削刃的三角形刀片HM390 TCKT 0703…
Price: Log in For Price
产品规格

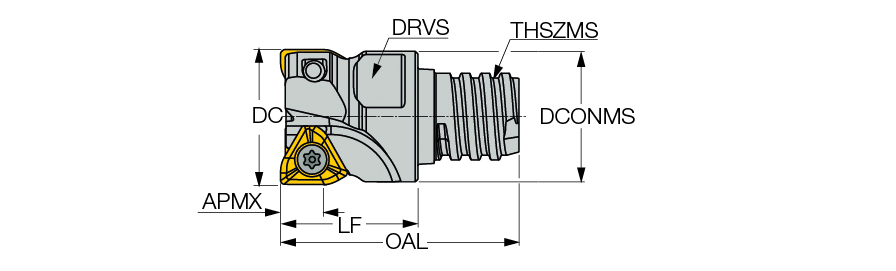

| Cutting Diameter (DC/DCX) | 5/8″ | Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Cutting Diameter (DC) | 5/8″ | Drive Size (DRVS) | 0.512″ |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 0.2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 1.07″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1.9 Degrees | Cutting Direction (HAND) | Right Hand |
| 应用 | | 坡走铣 | 方肩铣 | 槽铣加工 | 螺旋插补铣 | | 测量方式 | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.6″ | 刀体材质 | Steel |
| Master Insert Identification (MIID) | HM390 TCKT 0703PCTR | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 5/8″ | 单位 | I |
| Tool Type | 90° indexable endmills |
产品特性
| 系列描述 | 变形金刚（MULTI-MASTER）模块螺纹连接式90°主偏角立铣刀，夹持带3个螺旋切削刃的三角形刀片HM390 TCKT 0703… | 系列名称 | HM390 ETC-MM |

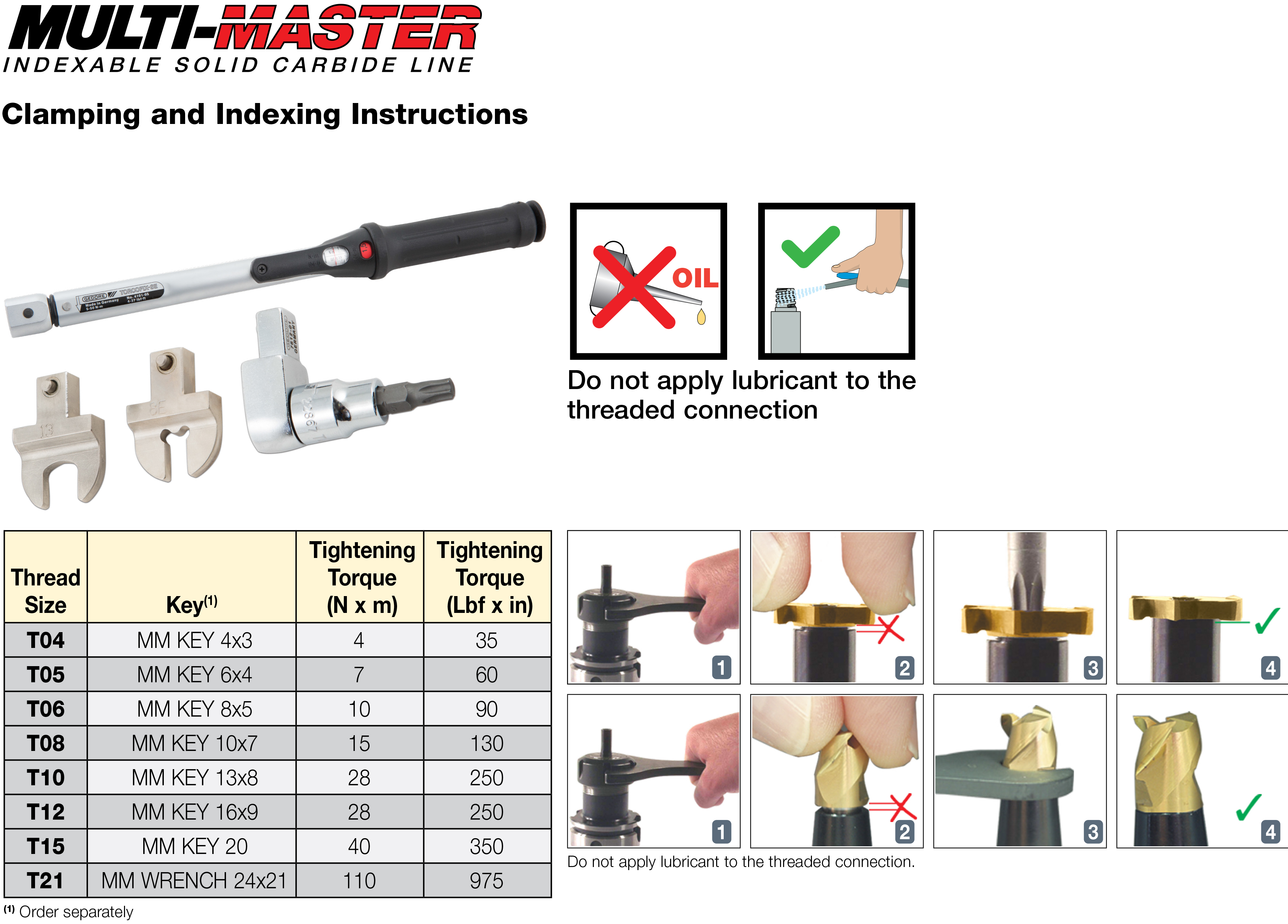

| 备注 | Insert clamping screw must be lubricated every indexing. Tightening torque .66 lbfxft. For adaptation click on More Info | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.1565
名字
Indexable End Mills
系列名称
HM390 ETC-MM
品牌
Iscar
