产品规格

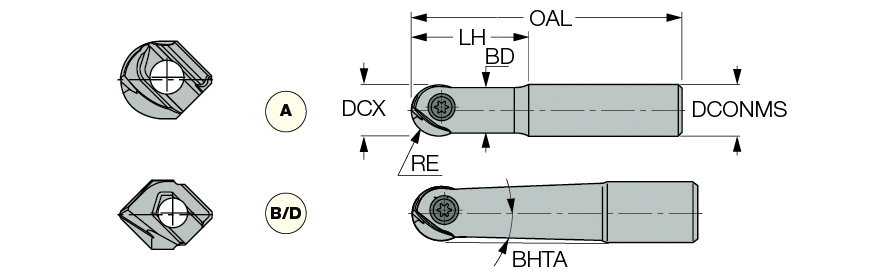

| Cutting Diameter (DC/DCX) | 12 mm | Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 12 mm | Torque (TQ) | 6 Nxm |
| Cutting Item Count (CICT) | 1 | Body Diameter (BD) | 10.6 mm |
| Depth of Cut Maximum (APMX) | 9.77 mm | Corner Radius (RE) | 6 mm |
| Overall Length (OAL) | 120 mm | Coolant Supply Property (CSP) | External |
| 柄部形式 | Round | 前式 | A |
| 应用 | | 仿形铣 | 埋头螺钉孔加工 | 带斜面或倒角方肩铣削 | 方肩铣 | 槽铣加工 | 钻铣 | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 12 mm | 测量方式 | Metric |
| Master Insert Identification (MIID) | HBR D120-QF | 刀体材质 | Steel |
| Head Length (LH) | 30 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | Ball nose endmills | 单位 | M |
产品特性

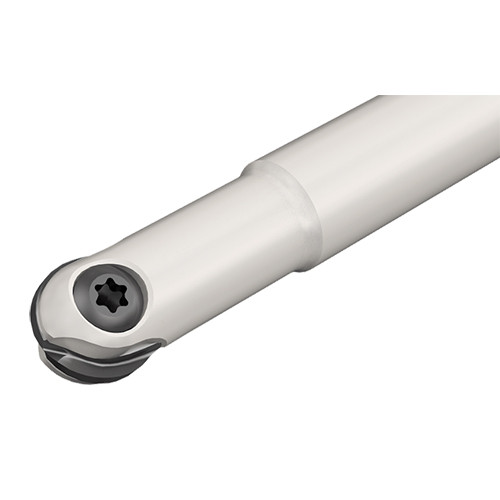

| 系列描述 | BALLPLUS 多功能球头铣刀头，D=12 mm。每刀杆能装夹五种不同的铣刀片。 | 系列名称 | HCM D12 |
| 备注 | 刀杆，点击“更多信息” 所有尺寸均为夹持HBR铣刀片时所测 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.1790
名字
Indexable End Mills
系列名称
HCM D12
品牌
Iscar
