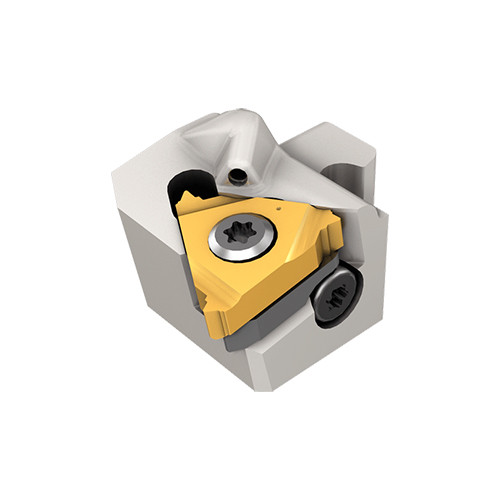

NQCH12-SEL-16-JHP
Screw Lock JETCUT Modular Heads which Mount ISO Laydown Threading Inserts for Swiss-Type Machines
Price: Log in For Price
产品规格
| Overall Length (OAL) | 29.4 mm | Rake Angle Axial (GAMP) | 10 Degrees |
| Head Length (LH) | 20.6 mm | Rake Angle Radial (GAMF) | 1.5 Degrees |
| Functional Width (WF) | 12 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | M TNMB 3-2-MS | 刀体材质 | Steel |
| Cutting Direction (HAND) | Left Hand | 测量方式 | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | 单位 | M |
| 应用 | | 外圆螺纹加工 | |
产品特性
| 系列描述 | Screw Lock JETCUT Modular Heads which Mount ISO Laydown Threading Inserts for Swiss-Type Machines | 系列名称 | NQCH-SER/L-JHP |
| 备注 | Use only RH Shank with RH Head and LH Shank with LH Head | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0650
名字
Indexable Internal Turning Tools
系列名称
NQCH-SER/L-JHP
品牌
Iscar
