产品规格

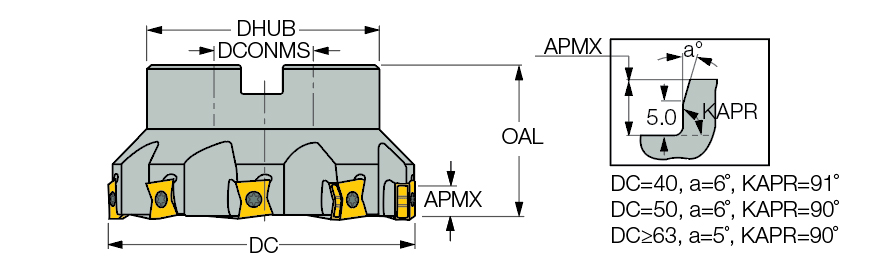

| Cutting Diameter (DC/DCX) | 125 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 125 mm | 刀体材质 | Steel |
| Cutting Item Count (CICT) | 18 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 10 mm | 应用 | | 方肩铣 | 槽铣加工 | 面铣 | |
| Connection Diameter Machine Side (DCONMS) | 40 mm | 测量方式 | Metric |
| Overall Length (OAL) | 63 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 95 mm | Tool Type | 90° Facemills |

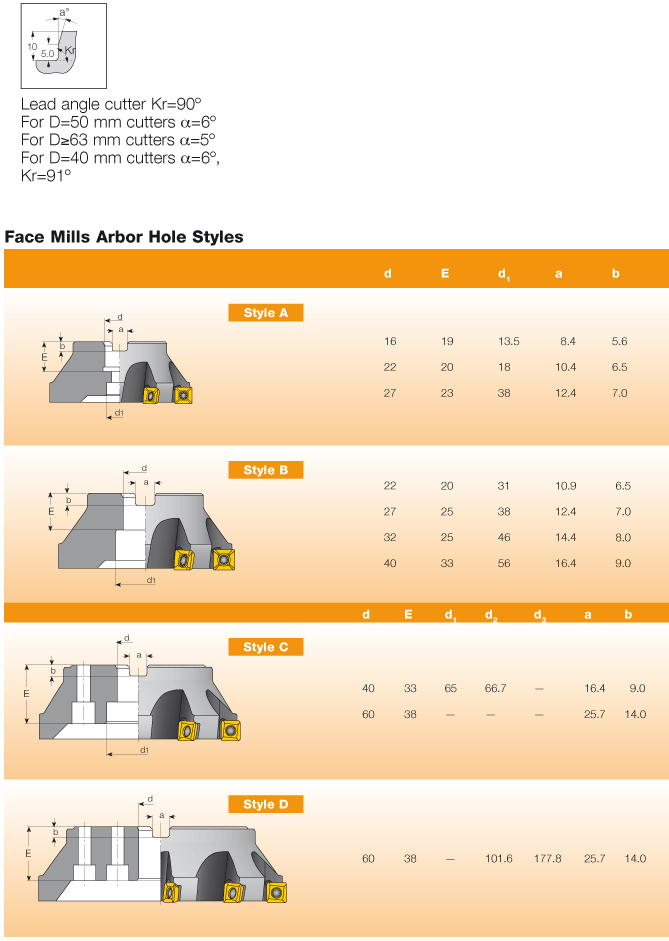

| Arbor Style | B | 单位 | M |
| Master Insert Identification (MIID) | LNMT 1106PN-N MM |
产品特性
| 系列描述 | 90°面铣刀，使用LN..1106... 立装刀片 | 系列名称 | F90LN-N11 |
| 备注 | 关于侧刃加工后的轮廓细节请点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
3.1220
名字
Indexable Face Mills
系列名称
F90LN-N11
品牌
Iscar
