产品规格

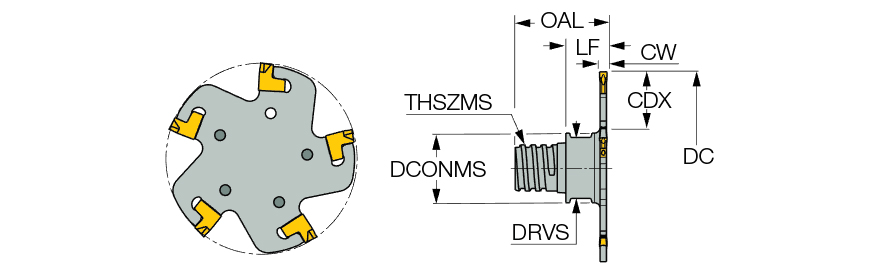

| Cutting Diameter (DC) | 50 mm | 刀体材质 | Steel |
| Cutting Width (CW) | 3 mm | Cutting Item Count (CICT) | 5 |
| Cutting Depth Maximum (CDX) | 14 mm | Functional Length (LF) | 11.5 mm |
| Connection Diameter Machine Side (DCONMS) | 19 mm | Master Insert Identification (MIID) | TAG N3 |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | Drive Size (DRVS) | 16 mm |
| Overall Length (OAL) | 24.7 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| 应用 | | T型槽 | 侧向开槽 | 切断 | | 单位 | M |
| 测量方式 | Metric |
产品特性
| 系列描述 | 变形金刚(MULTI-MASTER) 模块螺纹连接式小直径锯片铣刀，夹持刀片 TANG-GRIP | 系列名称 | TGSF-MM-JHP |
| 备注 | 为获取更佳性能，需采用带内冷却通孔的 CH 型接柄 刀柄信息，点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0670
名字
Disc w/Shank Indexable Slotting Cutters
系列名称
TGSF-MM-JHP
品牌
Iscar
