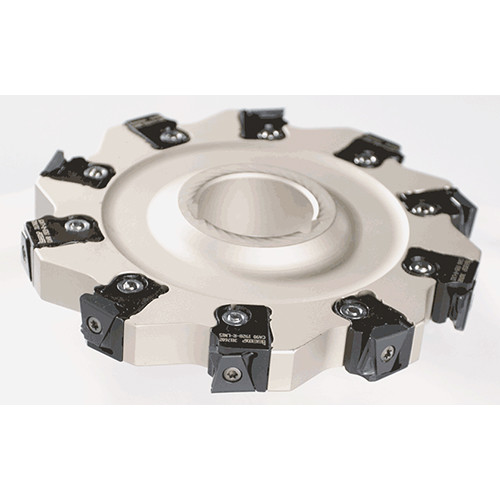

SDN D160-1925-40-CAPM15
切削宽度可调式盘式三面刃槽铣刀，刀夹夹持立装铣刀片LNAT 1506...-PM。通过更换刀夹，每一槽铣刀均可转换为三面刃槽铣刀，底刃两面刃槽铣刀及顶刃两面刃槽铣刀。
Price: Log in For Price
产品规格

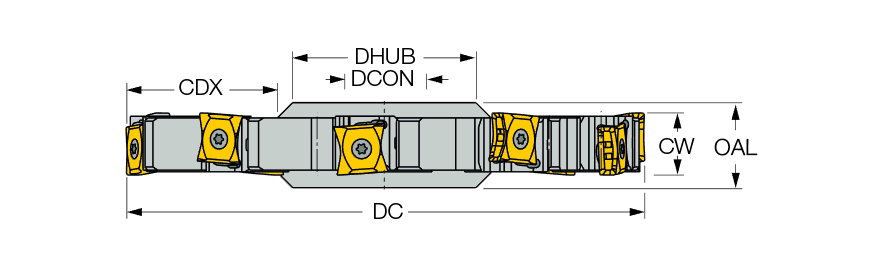

| Cutting Diameter (DC) | 160 mm | Overall Length (OAL) | 26 mm |
| Cutting Item Count (CICT) | 10 | Master Insert Identification (MIID) | LNAT 150640-TN-PM |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | 应用 | | 侧向开槽 | 底部方肩铣 | 方肩铣 | 槽铣加工 | |
| Cutting Depth Maximum (CDX) | 48.5 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 56 mm | 测量方式 | Metric |
| Cutting Width Maximum (CWX) | 25.6 mm | 刀体材质 | Steel |
| Cutting Width Minimum (CWN) | 18.9 mm | Connection Code Machine Side (CCMS) | Disk type |
| Flute Count (NOF) | 10 | 单位 | M |
产品特性
| 系列描述 | 切削宽度可调式盘式三面刃槽铣刀，刀夹夹持立装铣刀片LNAT 1506...-PM。通过更换刀夹，每一槽铣刀均可转换为三面刃槽铣刀，底刃两面刃槽铣刀及顶刃两面刃槽铣刀。 | 系列名称 | SDN-CAPM15 |
| 备注 | Each cutter can be changed into full slot, bottom or top milling configuration Use A type cartridges for inserts with 0.8-1.6 mm radii, B type cartridges for inserts with 2.5-3.2 mm radii and C type cartridges for insertswith 4.0 mm radius Each cutter features two keyways. To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position. For cartridge details, click on More Info | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
2.5800
名字
Disc w/Hole Indexable Slotting Cutters
系列名称
SDN-CAPM15
品牌
Iscar
