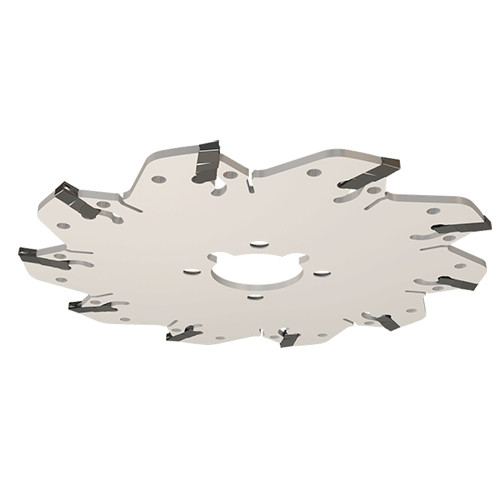

GM D200-3DG-40K
锯片铣刀，夹持自夹式铣刀片。夹持单头刀片 GIM 或 GIMY时，切深不受限制；夹持双头刀片GIP 及 GIF时，切深需小于 12mm；夹持刀片 GIPA时用于铝加工。
Price: Log in For Price
产品规格

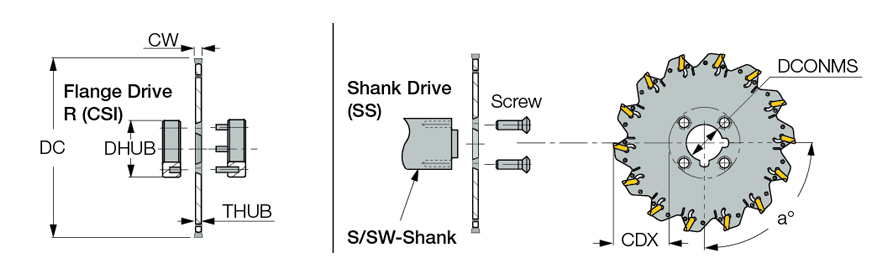

| Cutting Diameter (DC) | 200 mm | 应用 | | 侧向开槽 | 切断 | |
| Cutting Item Count (CICT) | 14 | Rotational Speed Maximum (RPMX) | 400 Rev/min |
| Peripheral Effective Cutting Edge Count (ZEFP) | 14 | Tool Type | Slitting cutters |
| Cutting Depth Maximum (CDX) | 59 mm | 测量方式 | Metric |
| Hub Thickness (THUB) | 2.4 mm | 刀体材质 | Steel |
| Cutting Width Maximum (CWX) | 3.35 mm | Connection Code Machine Side (CCMS) | Disk type |
| Cutting Width Minimum (CWN) | 2.7 mm | 单位 | M |
| Master Insert Identification (MIID) | GIP 3.00E-0.40 |
产品特性
| 系列描述 | 锯片铣刀，夹持自夹式铣刀片。夹持单头刀片 GIM 或 GIMY时，切深不受限制；夹持双头刀片GIP 及 GIF时，切深需小于 12mm；夹持刀片 GIPA时用于铝加工。 | 系列名称 | GM-DG |
| 备注 | DHUB refers to SW/S drive shanks and R drive flange set Maximum RPM may not be exceeded. | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.8150
名字
Disc w/Hole Indexable Slotting Cutters
系列名称
GM-DG
品牌
Iscar
