产品规格
| Cutting Diameter (DC) | 100 mm | Master Insert Identification (MIID) | GSFN 2 |
| Cutting Item Count (CICT) | 10 | 应用 | | T型槽 | 侧向开槽 | 切断 | 槽铣加工 | |
| Peripheral Effective Cutting Edge Count (ZEFP) | 10 | Rotational Speed Maximum (RPMX) | 800 Rev/min |
| Cutting Depth Maximum (CDX) | 30 mm | Tool Type | Slitting cutters |
| Hub Diameter (DHUB) | 39 mm | 测量方式 | Metric |
| Hub Thickness (THUB) | 1.6 mm | 刀体材质 | Steel |
| Cutting Width Maximum (CWX) | 2.69 mm | Connection Code Machine Side (CCMS) | Disk type |
| Cutting Width Minimum (CWN) | 1.8 mm | 单位 | M |
产品特性
| 系列描述 | 锯片铣刀，夹持自夹式铣刀片 | 系列名称 | SGSF |

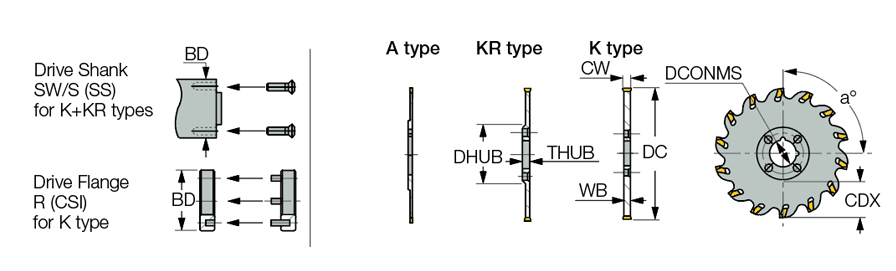

| 备注 | Only the K type cutters feature 4 driving holes around the central hole; they can be driven by the R drive shanks Refer to SW/S drive shanks and R driving flange set Maximum RPM may not be exceeded | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.1540
名字

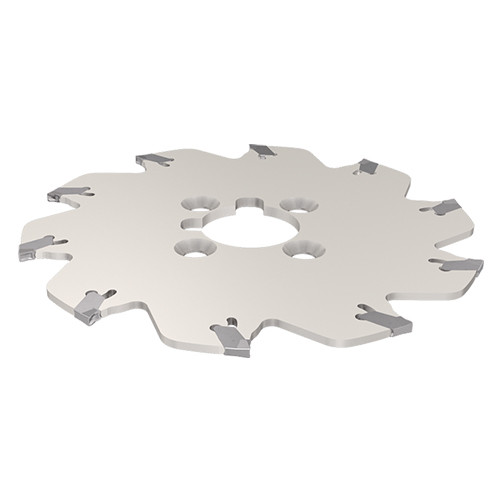

Disc w/Hole Indexable Slotting Cutters
系列名称
SGSF
品牌
Iscar
